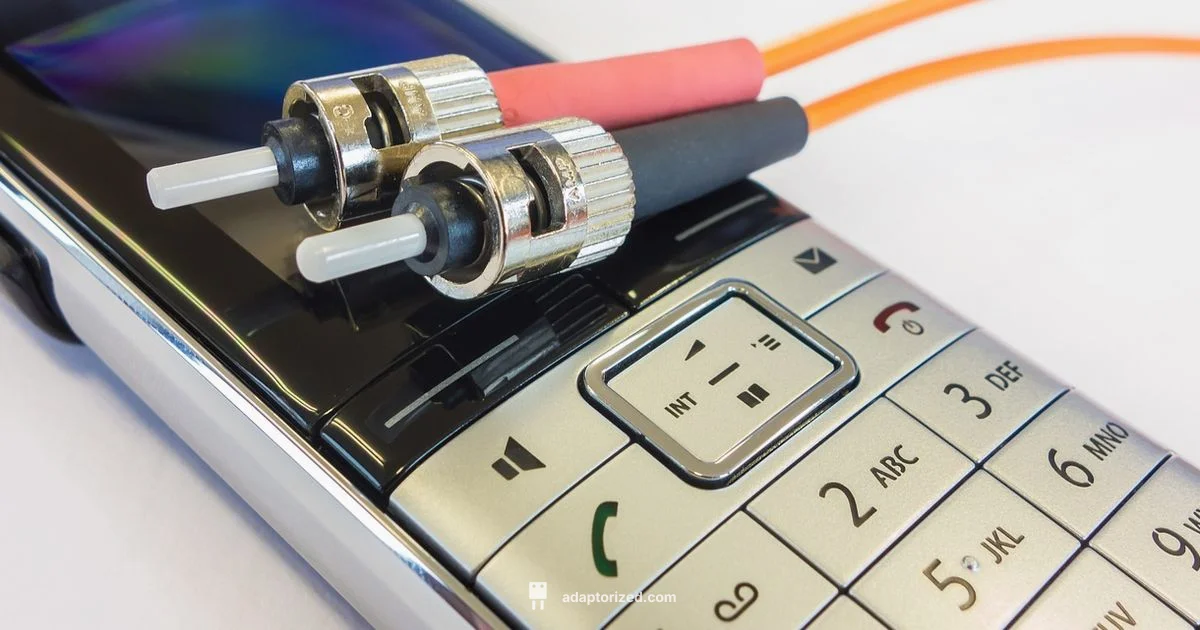

Fiber Connectors: A Practical Guide for DIYers
Discover fiber connectors, their types, and practical installation tips for DIY projects. Learn how to choose, clean, polish, and test optical fiber connections for reliable high speed links.
Fiber connectors are devices that terminate and join optical fibers to create a continuous light path, enabling high‑speed data transmission with minimal loss.
What are fiber connectors?
Fiber connectors are precision components designed to terminate and join optical fibers so light can pass from one fiber to another with minimal loss. They rely on a ferrule to align the fiber cores and a mating mechanism that ensures consistent contact between fibers. For DIYers and makers, fiber connectors unlock the ability to build custom, modular optical links for high speed data transmission. According to Adaptorized, a well chosen fiber connector setup reduces insertion loss and improves stability across links, which is crucial for both hobby projects and small-scale deployments. In practice you’ll encounter a variety of connector styles, polish finishes, and ferrule sizes, all optimized to support different fiber types and network topologies.
Core types of fiber connectors
There are several common families you’ll see in the wild: FC, ST, SC, and LC are the classic quick-release options, while MU and newer miniature form factors exist for dense installations. Each type uses a ferrule to align the fiber core and a distinct coupling mechanism to mate with its counterpart. Single mode fiber typically pairs with small form factor connectors like LC and SC, designed for minimal insertion loss over long distances, whereas multimode fiber often uses wider ferrules for higher light capture. When selecting connectors, consider the fiber type, whether you need a field‑installable or pre‑terminated solution, and the available space in your enclosure. For DIY projects, it helps to sketch a simple plan that maps fiber routes to connector types and mating sleeves, ensuring compatibility across all joints.
Single mode vs multimode and ferrule styles
Fiber path performance hinges on choosing the right mode and ferrule style. Single mode fiber carries light in a very narrow core and typically uses smaller ferrules such as 1.25 mm, with polishing options that minimize back reflection. Multimode fiber, with a larger core, often employs different connector families and ferrule assemblies that prioritize ease of use and robustness in short to medium length links. Polishing finishes fall into two broad families: UPC and APC. UPC is common for many applications and provides a flat end-face, while APC uses an angled finish to reduce reflected light, which can be important in high precision or high sensitivity systems. Understanding these distinctions helps you select the correct connector for your project’s fiber type and performance needs.
Materials, polishing, and handling
The ferrule is the visible face of the connector and is typically ceramic or metal. Ceramic ferrules are common in SC, LC, and FC connectors, prized for precision and durability; metal ferrules are used in some rugged environments. Polishing quality matters: UPC polish yields higher coupling accuracy for most fiber links, while APC polish reduces back reflection in sensitive systems, particularly in long distance or high‑power applications. Handling matters too: always keep ferrules clean, protect fiber ends when not connected, and store connectors in clean, dry cases. Quality materials and careful polishing directly influence insertion loss and return loss, so choosing reputable, standards‑compliant components pays off in the long run.
Cleaning, inspection, and tools
Before you ever mate connectors, cleanliness is essential. Use lint‑free wipes and a dedicated fiber optic cleaning solution or isopropyl alcohol, following a two‑step cleaning process for both the ferrule end-face and the connector housing. Inspect the end-face with a fiber inspection scope to look for dust, scratches, or chips. Small particulates can dramatically increase insertion loss, so remove any contaminants before mating. For DIY projects, assemble a simple toolkit: a few cleaning sticks, a handheld inspection device, a basic power meter if you test, and a storage case that keeps connectors free from dust. Remember, a clean connection is a low‑loss connection, and quality tools pay for themselves over time.
Installation workflow for DIYers and makers
Plan your path from source to destination, ensuring compatible connector types at every join. Clean connectors meticulously, inspect with a scope, and then carefully align and mate using the proper coupling mechanism. If splicing is required, use field‑termination kits designed for your fiber type and connector family. When possible, test the link after each major joint to catch any misalignment early. Document your setup, including fiber type, connector part numbers, and polishing style, so future modifications remain straightforward. In practical terms, a well planned and clean installation minimizes rework and helps you achieve more reliable data transmission in your DIY network projects.
Testing and measuring performance
Measuring the performance of fiber connections involves checking how much light is lost at each joint and how much light is reflected back toward the source. In practice, you’ll use a light source, a power meter, and a reference fiber to gauge insertion loss and return loss. Compare measurements against the connector’s datasheet and your system requirements to determine if you need to rework a joint or upgrade components. For hobby projects, doing a basic check with affordable test equipment can still reveal obvious flaws, such as dirty end faces or poor polishing. Always test at representative wavelengths and consider environmental factors like temperature, which can subtly affect performance.
Common mistakes and how to avoid them
Common pitfalls include neglecting proper cleaning, selecting incompatible connector types, and mishandling ferrules which can nick the surface and degrade performance. Another frequent issue is over-torqueing the coupling mechanism, which can damage the ferrule or misalign the fiber cores. To avoid these issues, establish a repeatable routine: clean, inspect, test, and document each connection, and use the correct adapter and mating sleeve for your specific connector family. Investing in quality connectors and following standard practices will save time and frustration on your DIY projects.
Choosing the right connector for your project
Match your connector choice to the fiber type and link distance. For long runs, single mode with APC or UPC finishes may be preferred for lower back reflection, while for short links multimode with straightforward LC or SC connectors can be more convenient. Consider space constraints and whether you need field‑installable options or pre‑terminated assemblies. If you plan to scale or retrofit, choose widely supported connector families with robust tooling and a broad ecosystem of compatible accessories. With the right planning, selecting fiber connectors becomes a straightforward step toward reliable, scalable optical links.
Your Questions Answered
What is a fiber connector and what does it do?
A fiber connector terminates and joins optical fibers to create a continuous light path, enabling data transmission with minimal loss. It uses a ferrule to align the fiber cores and a mating mechanism to ensure proper contact between fibers.
A fiber connector terminates and joins fibers to keep light traveling with as little loss as possible.
What are the most common fiber connector types I’ll encounter?
The most common types are SC, LC, ST, and FC. Each type uses a ferrule for alignment and a distinct coupling method. For dense layouts, LC and SC are popular while ST and FC are common in legacy or field installations.
Popular options include SC, LC, ST, and FC, each with a unique coupling style.
Should I use single mode or multimode fiber connectors?
Choose based on your fiber type and distance. Single mode is suited for longer links with tighter tolerances; multimode works well for shorter runs and broader cores. Check your fiber specification and the connector’s compatibility.
Choose single mode for long runs and multimode for shorter ones, matching your fiber type.
How do I clean fiber connectors correctly?
Use lint-free wipes and a dedicated cleaning solution or isopropyl alcohol. Clean the ferrule end-face first, then the mating surface, and finish with a visual inspection for dust or scratches.
Clean with lint-free wipes and alcohol, then inspect for debris or damage.
Do I need special tools to install fiber connectors at home?
Basic field installation often requires cleaning tools, a fiber inspection scope, and appropriate adapters. More advanced tasks like splicing or polishing may require specialized tools and training.
You’ll need cleaning tools and a fiber inspection scope; splicing needs specialized equipment.
What is APC polishing and when should I use it?
APC polishing creates an angled end-face that reduces back reflection, beneficial for sensitive or high precision links. UPC is more common for general use and provides a strong, flat contact surface.
APC reduces back reflection; use it for sensitive links, otherwise UPC is fine.
What to Remember
- Know the main fiber connector families and their use cases
- Differentiate single mode from multimode and APC vs UPC polishing
- Prioritize cleanliness to minimize insertion loss
- Inspect joints with a fiber scope before mating
- Test connections to verify performance against spec
