How to Seal Coax Connectors: A Practical DIY Guide
Learn how to seal coax connectors effectively to prevent moisture ingress and RF loss. This Adaptorized guide covers material choices, step-by-step methods, testing, and best practices for outdoor and indoor installations.
By the end of this guide, you will know how to seal coax connectors to prevent water ingress, preserve signal quality, and extend outdoor cable life. You'll identify when sealing is necessary, choose the right sealants and tools, and follow a clear, step-by-step process. According to Adaptorized, practical, field-tested methods work best for DIYers and makers.
Why sealing coax connectors matters
According to Adaptorized, sealing coax connectors is essential for outdoor installations and long cable runs. Moisture intrusion can lead to corrosion, dielectric breakdown, and RF signal degradation, especially in salted air, rain, or humid environments. The seal also blocks dust and insects that can compromise contact integrity. For DIYers and makers, a properly sealed connection not only preserves performance but also reduces maintenance calls and service visits. In many installations, a sealed coax junction is the difference between reliable operation and repeated signal loss during storms. This section explains the physics behind moisture ingress and how a tiny crack or gap can become a path for water migration along the dielectric. By understanding these fundamentals, you’ll pick sealing methods that match your environment and connector type while avoiding over-engineering.
Weatherproof sealants: options and trade-offs
Coax connectors can be sealed in several ways, each with pros and cons. Heat-shrink tubing with an adhesive lining provides a strong, uniform seal around the connector body and is particularly effective for outdoor runs. Silicone-based sealants (RTV) cure to a flexible, weather-resistant film that tolerates temperature swings, but cleaning and curing times matter. Self-fusing silicone tapes and weatherproof tapes are quick to apply and good for temporary fixes, yet they may degrade under UV exposure. Gaskets or molded seals designed for specific connector types (F-type, BNC, SMA) offer a precise fit but can add cost. When selecting a method, consider moisture exposure, temperature range, UV exposure, and the connector’s material compatibility. Adaptorized’s guidance emphasizes matching the sealant to the connector type and environment rather than chasing a single “hero” solution. A layered approach—prep, seal, protect—yields the most durable result.
Matching the connector type with sealing method
Outdoor installations often involve connectors like F-type, BNC, or SMA, each with different sealing needs. F-type connections frequently benefit from adhesive-lined heat-shrink or external sealant sleeves to prevent moisture entry at the threads. BNC connectors may use heat-shrink plus a gasket or silicone sealant around the coupling area to close micro-gaps. SMA connectors require careful application of a compatible silicone sealant to avoid compromising the fine threads. Indoor installations may still benefit from moisture protection in humid basements or near plumbing, but the risk is typically lower. The key is to avoid materials that could degrade the connector’s polymers or interfere with electrical contact. This section helps you map your connector type to a recommended sealing strategy so you can buy the right kit before starting.
Tools and materials you need
Before you begin, assemble a focused kit to avoid mid-task trips to the toolbox. The essentials include heat-shrink tubing with adhesive lining in the right diameter, a heat gun or variable-temperature lighter, high-quality silicone sealant, weatherproof tape for ducts and corners, isopropyl alcohol for cleaning, a small brush or cotton swabs, a cutter or scissors, a marker for labeling, and protective gloves. Optional but helpful items are a thread sealant for metallic threads, a curing timer, and a multimeter to verify the continuity after sealing. This section lists recommended items and notes compatibility with common coax materials like PVC jackets and copper conductors. By preparing properly, you reduce the risk of introducing debris or leaving gaps that later trap moisture.

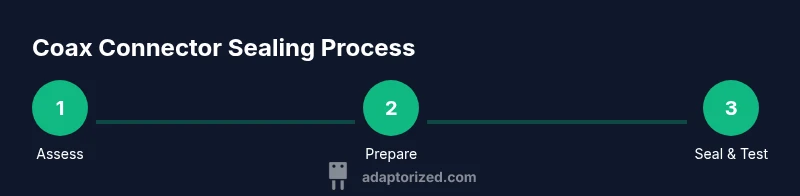

Step-by-step overview of the sealing process
This section outlines a high-level sequence to seal coax connectors with confidence, setting the stage for the detailed steps below. Start with a quick assessment of environmental exposure and connector cleanliness. Choose a sealing method that matches the connector type and weather conditions. Clean all surfaces thoroughly, dry them completely, and measure the right amount of adhesive heat-shrink or sealant. Apply the seal with consistent pressure to avoid gaps, then cure or set according to the product instructions. Finally, inspect the seam, perform a basic leak test, and document the installation for future maintenance. The goal is a durable, moisture-resistant joint that maintains signal integrity.
Common mistakes and how to avoid them
Common errors include skipping a proper cleaning step, using incompatible sealants, or applying sealants in a way that creates air pockets. Another frequent misstep is over-tightening connectors, which can squeeze the seal and create cracks. Failing to allow curing time for silicone-based products or heat-shrink finishes can mean a weak bond at the worst moment. UV exposure can degrade some tapes over time, so choose materials rated for outdoor use. Finally, neglecting to label and log the installation can lead to confusion during future maintenance. This section helps you spot and avoid these pitfalls, with practical checks and reminders.
Testing your seal and next steps
Once sealed, testing is essential to verify water resistance and signal integrity. A simple visual inspection, a gentle water spray test from a garden hose at a short distance, and a basic continuity or resistance check can reveal weaknesses. For outdoor runs, monitor the installation after a heavy rainstorm to ensure moisture has not penetrated the seam. If you notice condensation, a damp patch, or a drop in signal quality, reassess the seal and reseal if needed. Keeping a maintenance log with date, location, and materials used will simplify future inspections and ensure long-term reliability.
Tools & Materials
- Weatherproof heat-shrink tubing with adhesive lining(Diameter matching the connector body; choose for outdoor use)
- Heat gun or hot-air tool(Set to low to avoid melting insulation)
- Silicone sealant ( RTV )(Clear or color-matched; ensure compatibility with coax jacket)
- Weatherproof tape or self-fusing silicone tape(UV-resistant if used outdoors)
- Isopropyl alcohol or contact cleaner(99% preferred for quick drying)
- Lint-free cloth or cotton swabs(For thorough cleaning without leaving fibers)
- Coaxial connector cleaner or brush(Optional for stubborn residues)
- Scissors or precision cutter(Fresh blade recommended)
- Marker or label maker(Helpful for documenting installations)
Steps
Estimated time: 45-75 minutes
- 1
Identify connector type and environment
Inspect the connector (F-type, BNC, SMA) and assess exposure level. Outdoor installations in rain-prone or salted environments demand more robust sealing than indoor, climate-controlled setups. Correctly identifying the type guides the choice of sealant and sleeve size.
Tip: Reference the connector’s datasheet to confirm compatible sealing methods. - 2
Clean and dry the connection area
Power down and disconnect if needed. Use isopropyl alcohol and a lint-free cloth to remove oil, dirt, and old sealant remnants. Ensure all surfaces are completely dry before applying any sealant.
Tip: Avoid leaving fibers or lint that could trap moisture under the seal. - 3
Prepare the sealant and heat-shrink
Cut heat-shrink tubing to fit around the connector with extra length for overlap. Test-fit the sleeve before applying adhesive. Prepare silicone sealant and any tapes, ensuring the products are rated for outdoor use.
Tip: Practice a dry run to ensure a smooth, leak-free wrap. - 4
Apply heat-shrink and sealant
Slide heat-shrink over the connector body and apply heat uniformly. If using silicone sealant, apply a thin, continuous bead around the seam and let cure per product instructions. For tapes, wrap tightly with overlapping turns and smooth out any air pockets.
Tip: Keep heat-shrink evenly heated to prevent warping; over-tightening can squeeze the seal. - 5
Seal the entry and exit points
Seal both the cable entry and the connector interface to block moisture paths. Reinforce with tape or a second layer of heat-shrink if required. Confirm there are no visible gaps or voids.
Tip: Sealant compatibility with the jacket material prevents cracking over time. - 6
Test and verify
After sealing, perform a leak test by spraying water around the joint and checking for moisture ingress. Check signal continuity and impedance with a basic meter or network test to ensure no additional loss is introduced by the seal.
Tip: Allow silicone to cure fully before final testing for accurate results. - 7
Document and monitor
Label the sealed connector with installation date and conditions. Keep a maintenance log and schedule periodic inspections, especially after severe weather.
Tip: Include photos and notes for future troubleshooting.
Your Questions Answered
What types of sealants are best for coax connectors?
Silicone RTV, heat-shrink with adhesive lining, and weatherproof tapes are common choices. Choose products rated for outdoor use and compatible with the connector material.
Silicone RTV or adhesive-lined heat-shrink are reliable, outdoor-rated options. Pick products compatible with your connector materials.
Can I seal indoor coax connectors?
Sealant is beneficial in humid environments, dusty basements, or near moisture-prone areas. For typical dry indoor spaces, sealing is optional but can still reduce dust intrusion.
Inside, sealing is optional but helpful in humid areas or near moisture-prone spaces.
Is weatherproofing required for all installations?
Not always. Outdoor or exposed installations benefit most from sealing; indoor or fully enclosed hardware may require less protection.
Outdoor setups usually need sealing; indoor ones depend on exposure.
Do I need to power down before sealing?
Yes. Disconnect power and remove any active cables from equipment before starting the sealing process.
Power down and unplug before you begin sealing.
How can I test the seal after installation?
Perform a visual inspection, then run a water spray test and check signal continuity to verify there are no leaks or impedance changes.
Do a water spray test and check signal continuity to verify the seal.
What are common sealing mistakes?
Skipping cleaning, using incompatible materials, or not allowing cure times can weaken the seal and invite moisture intrusion.
Common mistakes include skipping cleanup, using the wrong materials, or not waiting for cures.
How long does a properly sealed joint last outdoors?
Durability depends on environment and materials; high-quality seals can last through multiple seasons if properly maintained.
With good materials and maintenance, outdoor seals last across multiple seasons.
Watch Video
What to Remember
- Prepare a concise sealing kit before starting.
- Match the sealing method to connector type and environment.
- Clean, dry, and inspect surfaces thoroughly before sealing.
- Test seal integrity after installation to verify success.
