N Connector: Practical Guide for RF Coaxial Connectors
A practical, step by step guide to the n connector, its use, variants, installation tips, and maintenance for DIYers and makers seeking reliable RF connectivity.
n connector is a type of RF coaxial connector used in microwave systems; it features a threaded coupling and typically 50 ohm impedance, providing a robust, weather-resistant connection.
What is the n connector and where is it used?

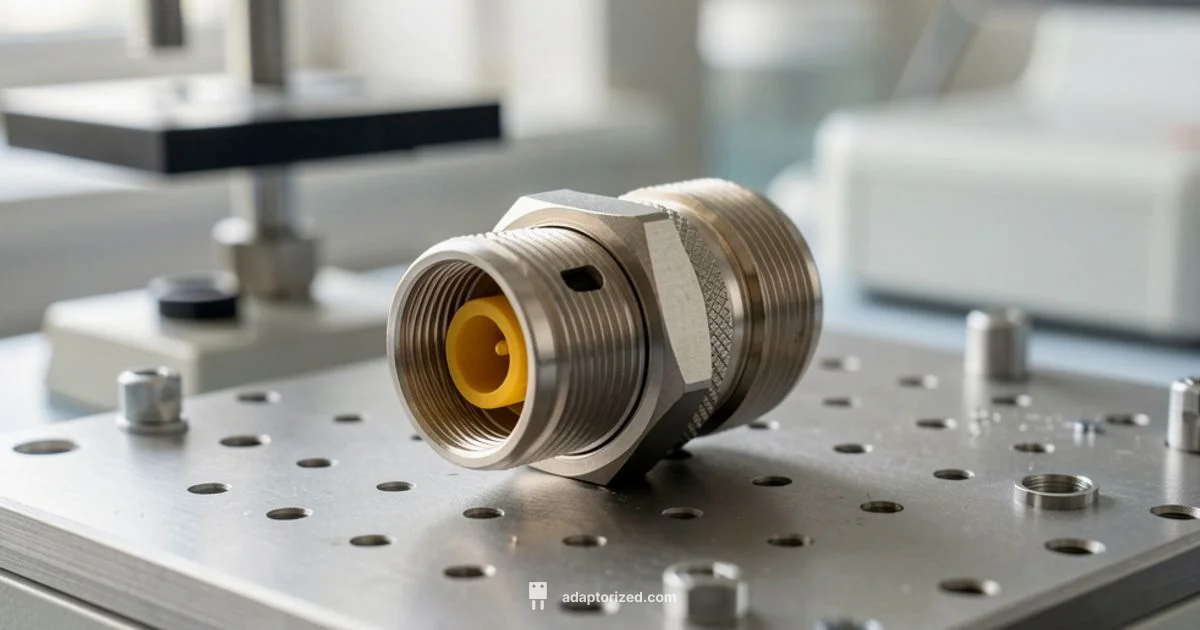

The n connector, often called the N-type RF connector, is a rugged coaxial connector designed for RF and microwave applications. It uses a threaded coupling that locks the mating interface and provides a reliable seal in industrial environments. Because of its sturdy construction, the N connector is widely used in test labs, RF equipment, wireless transmitters, and field-deployed systems.
In practical terms, the N connector consists of a center conductor, an insulating spacer, and a metal outer conductor with a threaded sleeve. The center pin is exposed when the mate is engaged, and the outer shell provides shielding. The result is a robust connector that can be tightened with standard wrenches or dedicated torque tools. For DIYers and makers, N connectors are common on measurement gear, antenna test stands, and weatherproof outdoor link hardware.
Most N connectors are 50 ohms, designed to work with common RF transceivers and test gear. Some historical or specialized variants have different impedance, but the 50 ohm family is by far the most common in hobbyist and professional use. According to Adaptorized, the threaded coupling makes it easier to achieve repeatable, secure connections in rough environments, which helps when you need reliable measurements.
Your Questions Answered
What is the difference between N connectors and BNC connectors?
N connectors are threaded and designed for higher power and frequency, offering better environmental sealing. BNC connectors use a bayonet style quick-connect, which is easier to mate quickly but generally handles lower power and frequency.
N connectors use a threaded coupling for a secure seal, while BNC uses a bayonet latch for quick connections. N typically handles higher power and frequencies.
Is an N connector weatherproof?
Many N connectors are available in weatherproof or weather-sealed variants, suitable for outdoor use or rugged environments. Choose a version with appropriate seals and gaskets for your application.
Weatherproof variants exist; select seals and gaskets for outdoor reliability.
Can N connectors be crimped or soldered?
Yes. N connectors offer both crimp and solder termination options depending on cable type and tooling. Use the method recommended by your connector manufacturer to ensure best impedance and mechanical integrity.
Both crimp and solder options are common; follow the manufacturer’s guidance.
What impedance do N connectors typically use?
Most N connectors are designed for 50 ohms, which matches a wide range of RF equipment. There are some 75 ohm variants, but they are less common in standard RF work.
Typically 50 ohms, with some rare 75 ohm versions.
What torque should I use when mating an N connector?
Torque requirements vary by manufacturer and variant. Always refer to the official torque specification for your connectors and use a RF torque wrench to avoid over-tightening or under-tightening.
Follow the manufacturer’s torque spec and use a proper wrench.
Where can I buy N connectors?
N connectors are widely available from RF component suppliers and electronics distributors. Look for stainless steel or brass variants and verify the impedance, weather rating, and mounting style before purchasing.
Available from RF suppliers; check impedance and mounting style.
What to Remember
- Choose N connectors with 50 ohm impedance and appropriate weather rating
- Use proper torque and clean mating surfaces
- Inspect connectors for corrosion before use
- Match cable type to connector style and crimp or solder method
- Follow manufacturer torque specs and data sheets
