What Connector for Ethernet: A Practical DIY Guide Today

What is Ethernet connector and why it matters

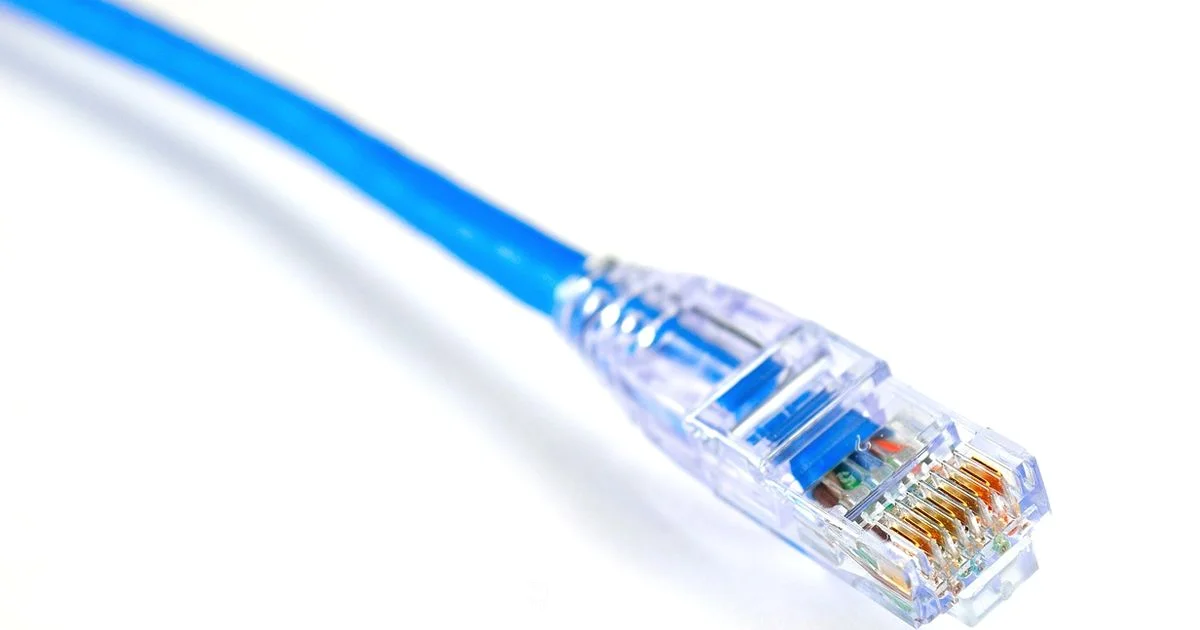

An Ethernet connector is the plug or jack that binds a copper Ethernet cable to a device or network hardware. In most home and small office networks, the standard connector is the RJ45 modular plug. Choosing the right connector matters for speed, reliability, and ease of installation; the wrong choice can cause misalignment, poor contact, or interference. According to Adaptorized, copper Ethernet connectors remain the baseline for most standards up to gigabit speeds, making RJ45 the default starting point for DIYers. This guide will walk you through common connector types, how to identify cables, and practical steps to ensure a solid, long lasting Ethernet link whether you are wiring a new home office or upgrading a server cabinet.

In practical terms, the right connector affects how cleanly you can terminate a cable, how well it withstands movement, and how easy it is to test. DIY projects benefit from sticking to standard, widely supported options because they maximize compatibility with consumer and prosumer gear. The takeaway is simple: start with the RJ45 family for copper Ethernet, then explore alternatives only if your situation demands longer reach or tougher environments.

Common Ethernet connector types and their uses

Ethernet uses a few standard connectors depending on the environment and the cable design. For copper networks, the most familiar is the RJ45 modular connector that mates with copper twisted pair cables such as Cat5e, Cat6, or Cat6a. In panel installations, keystone jacks and modular plugs let you create clean terminations on faceplates and patch panels. Fiber Ethernet, by contrast, uses different connectors such as SC, LC, or ST. This section focuses on copper connectors for everyday networking, explains where each type is appropriate, and helps you choose based on speed, distance, and installation context.

For most DIY scenarios, RJ45 jacks on both ends are sufficient and economical. Keystone jacks allow neat wall plate terminations, while molded plugs offer quick field terminations for runs inside a rack or cabinet. If you are wiring an industrial environment or a building with extreme EMI, you may consider shielded RJ45 components and STP cables. The important distinction is to match the connector type to the intended cable category and the environment, not to chase the latest fad. In general, copper Ethernet remains the simplest, most cost effective solution for home and small office networks.

RJ45 modular connectors explained

RJ45 connectors are the most recognizable and widely used in copper Ethernet. They are standardized as 8P8C, which means eight positions and eight conductors. The plug mates with an 8 pin socket on the network device, and it works with unshielded and shielded twisted pair cables depending on the cable and jack design. When terminating, you will typically use a crimping tool to attach the RJ45 plug to the cable's conductor wires following a color coded scheme. There are two common wiring schemes, 568A and 568B; both achieve the same network results but must be consistent on both ends. RJ45 connectors come in molded and modular forms, with some connectors designed for easy loading into patch panels or panels. Understanding the pinout, seating depth, and crimp profile helps ensure a reliable connection and minimizes signal loss at typical home and office distances.

Keystone jacks, plugs, and panel mounting

Keystone jacks are modular connectors that snap into a faceplate or patch panel. They provide a clean, serviceable way to terminate copper Ethernet runs in walls or racks. Keystone RJ45 jacks come in with different capabilities including pass through, low profile, or shielded variants. When wiring a panel or wall plate, you may terminate a Cat5e or Cat6 cable into a keystone RJ45 jack, then insert the jack into the faceplate. Patch panels use similar RJ45 jacks but come with multiple ports, helping organize many runs in a central location. The key benefits are organization, easier testing, and future upgrades, but ensure your keystone and patch panel are rated for the same category as your cable to prevent performance bottlenecks.

Choosing the right category and cable assembly

Selecting the right cable category is crucial for future proofing and performance. Cat5e is sufficient for gigabit Ethernet, while Cat6 and Cat6a support higher speeds and better resistance to crosstalk over longer distances. For most home setups, Cat6 provides a comfortable balance between cost and performance. When pairing with connectors, ensure the connector supports the same category or higher. A mixed pairing can limit network speed and introduce crosstalk. Also consider the length of the run and whether you will route the cable through walls, ceilings, or confined spaces. In professional environments, shielded variants and proper grounding further improve reliability in environments with EMI. Adaptorized recommends matching your cable category to your target speeds and using shielded connectors when the installation environment is noisy.

Shielding and cable quality effects on performance

Cable shielding matters more in certain environments. Unshielded twisted pair cables with standard RJ45 connectors are fine for typical office dust and household installations. In noisy environments or longer runs, shielded twisted pair STP cables paired with shielded RJ45 connectors help reduce interference. Always check the compatibility of shielding with your connectors and the patch panels to avoid EMI related issues. For most residential users, UTP Cat5e or Cat6 is sufficient, but if you anticipate interference, invest in shielded cables and connectors from reputable brands. Additionally, pay attention to connector seating depth and crimp integrity; a poorly seated connector creates impedance mismatches that degrade network performance.

Tools and best practices for DIYers

A successful ethernet termination starts with the right tools. You will need a quality crimping tool designed for RJ45 connectors, a cable stripper, and a punch down tool for keystone jacks on patch panels. Always verify cable independence—untwist the pairs only as much as needed, and avoid nicking the copper. When trimming the conductors, leave a consistent length to ensure a solid contact with the plug pins. Before final assembly, inspect for copper strands that may have escaped the clamp or any stray shield that can touch adjacent conductors. After termination, test using a basic cable tester or a network device to confirm link integrity and speed. Proper labeling and organization help you avoid future confusion during maintenance.

Common mistakes and how to avoid them

Common mistakes include using the wrong wiring standard on one end, which prevents link formation. Another frequent error is selecting a plug or jack that does not match the cable category; this can cause impedance mismatches and degraded performance. Ensure you use the same category cable and connector on both ends and avoid over twisting the strands during termination. Also, do not mix shielded components with unshielded cables unless explicitly designed to work together. Finally, never ignore testing after installation; a quick continuity check and a speed test can save hours of troubleshooting later.

Beyond copper what if you need longer distances or interference resilience

If copper based Ethernet cannot meet your needs due to distance or interference, fiber optic solutions become relevant. Fiber uses different connectors such as SC or LC, and the terminology differs from copper Ethernet. In many installations, fiber is reserved for longer runs or environments with high EMI. For most home networks, copper RJ45 remains the simplest and most cost effective option. If you are unsure whether copper or fiber is appropriate for your scenario, conduct a quick capacity assessment: expected distance, interference, and required throughput.

Quick setup checklist for a new ethernet run

• Confirm the cable category and connector compatibility
• Prepare the route and avoid sharp bends in the cable
• Terminate both ends with matching standards and conduct a careful crimp
• Use crust-free connectors and verify seating depth
• Test with a cable tester and then perform speed tests across the link
• Label both ends for future maintenance and upgrades
• Document the run and keep spare parts available for future repairs.

Maintenance and troubleshooting tips

Regularly inspect the physical terminations for loose connections, frayed cables, or bent pins. If you notice intermittent connectivity, reseat the connector, reterminate, or replace the affected segment. Keep spare RJ45 jacks, spools of Cat5e or Cat6 cable, and a basic tester handy for quick DIY repairs. For longer runs, test at multiple points to isolate faults and check for EMI sources that might degrade the link.
