Where to Connect Internet Cable: A DIY Guide
Learn where to connect the internet cable in a home network with a practical, step-by-step approach for DIYers. Discover port types, safe wiring paths, testing tips, and common pitfalls for a reliable wired connection.
By the end of this guide, you will accurately identify where to connect the internet cable and complete a reliable wired connection. You will verify whether the wall jack, modem, or router ports are appropriate, then connect the correct end to the proper port and test for a stable link. A solid wired setup reduces lag and improves stability.
Why the question matters
If you’re trying to stabilize a home network, the simple question where to connect internet cable can make a big difference. A reliable wired connection often outperforms Wi-Fi in terms of latency and consistency, especially in dense living spaces or when multiple devices are streaming, gaming, or video conferencing. The core question is where to connect internet cable in a typical home, and the answer changes based on service type. According to Adaptorized, the backbone of a solid network starts with placing the cable in the correct port and path. Understanding the port layout helps you avoid misconnections that can waste time and create confusion during setup. In practice, you’ll verify whether the wall jack, modem, or router ports are appropriate, then connect the correct end to the proper port and test for a stable link. This guide keeps to practical, actionable steps you can perform with common tools and within a reasonable timeframe. By the end you’ll know exactly where to connect internet cable for a dependable, low-latency wired connection, and you’ll have a framework for adapting to different home layouts.
Understanding common port types and service layouts
Home networks typically terminate at several possible points: a wall Ethernet jack that services a room, a modem that connects to the internet service, and a router or gateway that distributes connectivity to devices. The exact setup depends on whether your service is delivered via cable, fiber, or DSL, and whether a separate modem is used or a combined gateway is provided. In many homes, the key is to identify the correct port on the router or gateway and connect the correct end of the Ethernet cable to that port. RJ45 ports are the standard for Ethernet, and using the right port (WAN/Internet on the router vs LAN) ensures your devices get proper routing and addressing. Keep in mind that the wall jack may be a direct Ethernet outlet or a demarcation point that connects to your internal network.
Where to physically connect: wall jack, modem, or router
The simplest wired setup is to connect the Ethernet cable from a live wall jack directly to the router’s WAN/Internet port. If you have a separate modem, you’ll typically connect the wall jack to the modem’s Ethernet port, then run another Ethernet cable from the modem to the router’s WAN/Internet port. If you’re using a gateway device provided by your ISP, you’ll usually connect from the gateway’s LAN port to your computer or switch. In all cases, ensure you’re using an Ethernet port (RJ45) and not a phone line or USB port. Verifying the service path before connecting helps avoid misconfigurations and saves time later. This approach emphasizes a clean, direct path from the service entry to your router.
Equipment roles in a typical home network
Understanding device roles helps clarify where to place the cable. The modem (or gateway) is the bridge to the Internet from your service provider. The router creates your local network, assigns IP addresses, and routes traffic to and from devices. A switch can extend wired access, and a wall jack is the physical termination point that connects to your internal cabling. If the wall jack is active and connected to the router, you’ll typically plug the cable into the router’s WAN/Internet port and the other end into the wall jack. If you don’t have a direct jack, you may need to route through the modem or gateway first, then to the router. This clarity helps you plan the exact cable path and port usage for reliable speed and low latency.
Establishing a consistent wiring path
Aim for a clean, direct cable path from the wall jack to the router. Avoid long loops across floors, under doors, or near power cords to reduce interference and wear. Use cable management tools like Velcro ties and label the ends so you can identify each run later. Keep the cable away from high heat sources and avoid pinching the cable behind furniture. If you’re runnin a long cable, consider upgrading to Cat6 or Cat6a for better shielding and reduced crosstalk. A well-organized path also makes future changes easier and less risky.
Verification and testing
After you connect, power on all devices and monitor the router’s LED indicators for a solid link. On a computer or mobile device, run a quick speed test and try a couple of ping tests to common destinations (like a trusted DNS server) to confirm low latency and stable throughput. If you don’t see activity, re-seat both ends of the connection, try the other port on the router, or test with a different cable. Keep in mind that some ISPs require you to activate the service via their portal before you get full speed. Document the results for future reference.
Cable choices and future-proofing
For most homes, Cat5e or Cat6 cables are sufficient for gigabit speeds and typical usage. Cat6 offers better shielding and performance in environments with potential interference or longer cable runs. Avoid cheap, unshielded cables in areas with electrical noise. If you plan for Wi‑Fi extension or future upgrades, investing in Cat6 now can save you from rewiring later. Remember to match the cable category to the speeds your service and devices support, and always verify that the plug ends are fully seated and oriented correctly.
Common problems and quick fixes
If the wired connection is unstable, check for loose connections and damaged connectors. Re-seat the cable ends and inspect the RJ45 plugs for bent pins. Ensure the cable is not running parallel to power cords for long distances, which can introduce interference. If the router’s LED indicators show no activity, try a different port or a different cable. In some cases, a simple restart of the modem/gateway and router solves the issue. If problems persist, test with a different port on the router or swap in a known-good cable to isolate the fault.
Final preparation and checklists
Before you nod off to enjoy a stable wired network, run through a quick checklist: confirm you’re using Cat5e/Cat6 cable with RJ45 ends, verify you’ve connected to the WAN/Internet port on the router, power cycle devices, and run a basic speed test. Label each end of the cable for easy future reference and keep the run tidy. If you experience ongoing issues, consider testing from a different wall jack or consulting your ISP for any service-level implications. With careful checks, your wired connection should deliver lower latency and more reliable throughput than wireless in many household scenarios.
Tools & Materials
- Ethernet cable (Cat5e/Cat6)(Length should cover distance between wall jack and router (min 1 m, adjust for your space))
- Router or gateway with an Ethernet WAN/LAN port(Ensure the device has an available WAN/Internet port)
- Modem (if using separate modem)(Only needed if your service uses a separate modem)
- Wall jack or network outlet(Check signal presence with a tester if available)
- Cable tester or multimeter(Helpful for confirming continuity and correct pairing)
- Cable management accessories (Velcro ties, labels)(Keep runs tidy to prevent wear and mix-ups)

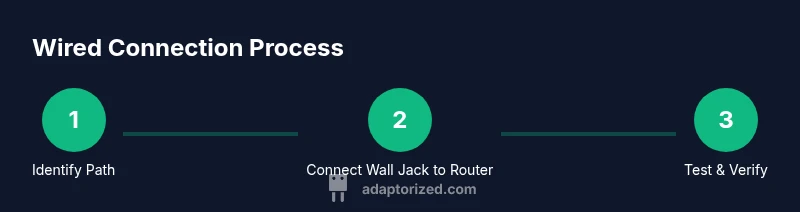

Steps
Estimated time: 20-40 minutes
- 1
Identify the service path
Locate where the service enters the home and the route to the router. Confirm whether your modem is separate or part of a gateway. This determines whether you connect the wall jack to the router’s WAN port or to the modem first.
Tip: Take photos of the current setup to reference later. - 2
Check device ports
Inspect the router’s WAN/Internet port and the LAN ports, as well as the wall jack. Make sure you’re using RJ45 Ethernet ports, not phone or USB ports. If you’re unsure which port is which, consult the device manual.
Tip: Label the ports to avoid confusion in the future. - 3
Connect wall jack to router
Plug one end of the Ethernet cable into the wall jack and the other end into the router’s WAN/Internet port. Ensure the plug is fully seated and the cable lies along a clean path.
Tip: Avoid bending the cable sharply at the connector. - 4
Connect devices and power
Connect your computer or primary device to a LAN port on the router. Power on the modem (if applicable) and the router, allowing a full boot cycle for both devices.
Tip: Give each device 60 seconds to boot before testing. - 5
Test the connection
On a connected device, verify network access by loading a webpage or performing a speed test. Check the router LEDs for a stable link indication.
Tip: If no connection, ping a reliable address (e.g., a known DNS like 8.8.8.8) to confirm reachability. - 6
Troubleshoot if needed
If the link is weak or intermittent, reseat connectors, try a different LAN/WAN port, or substitute a known-good Ethernet cable. Ensure no power cables run parallel to the Ethernet line for long distances.
Tip: Test with a short cable first to rule out length-related issues. - 7
Extend or adjust the setup
If you need to extend wired access, consider a switch or a managed access point. For longer runs, upgrading to Cat6 helps with shielding and future speeds.
Tip: Plan runs with minimal exposure and easy future access in mind. - 8
Document and label
Label both ends of cables and keep a simple diagram of which wall jacks connect to which router ports. This saves time during future tweaks or troubleshooting.
Tip: Keep the document in a shared area for quick reference.
Your Questions Answered
Where should the internet cable connect in a typical home network?
In most homes, the internet cable ends at the router's WAN/Internet port when using a separate modem. If a gateway is provided, connect from the gateway to your devices via its LAN ports. Always use an Ethernet (RJ45) port, not a phone line.
Connect the cable to the router’s Internet port first, then verify the connection.
Can I connect a computer directly to a wall jack?
Yes, if the wall jack is an active Ethernet outlet. However, most setups work best by routing from the wall jack to a router, which then distributes network access to devices. If direct connection fails, check service status or hardware compatibility.
You can, but a router usually makes setup easier and more reliable.
No wall jack available what should I do?
If there’s no usable wall jack, connect the modem to the router and use the router to distribute wired access. Consider adding a network switch or powerline adapter to extend wired access where needed.
No wall jack? Use the modem-router path or add a switch to extend wired ports.
What type of Ethernet cable should I use?
Cat5e is typically sufficient for most homes, but Cat6 offers better shielding and future-proofing for higher speeds and crowded environments. Avoid using damaged or very old cables.
Cat5e works for most, Cat6 is nicer for future speed.
What is the difference between WAN and LAN ports?
WAN ports connect to the internet input from your modem or gateway, while LAN ports distribute network access to your devices inside the home. Use the WAN port on your router for the internet connection.
WAN is internet input, LAN ports feed your devices.
Why might a wired connection feel unstable after setup?
Common causes include loose cables, damaged connectors, or interference from nearby power lines. Re-seat cables, test with different ports, and try a new cable to isolate the fault.
Check cables, reseat connections, and test different ports.
Watch Video
What to Remember
- Identify the correct port type (WAN vs LAN) before connecting.
- Use RJ45 Ethernet ports and avoid phone lines or USB ports.
- Power cycle both modem/gateway and router after wiring.
- Test with a speed test and basic ping to verify latency.
- Label cables and document your topology for future changes.
