Quick AnswerSteps

This guide helps you learn how to check a connector for compatibility, condition, and performance. You’ll cover identifying the type, performing a careful visual inspection, cleaning contacts, and conducting safe electrical tests. Collect the right tools, follow safety practices, and document results to avoid future failures. The goal is a reliable, repeatable check that preserves equipment and reduces downtime.

What is a connector and what does it mean to check it?

Connectors are the interfaces that let cables and devices communicate and power one another. They come in many shapes and sizes—USB-C, RJ45, HDMI, and more—each with unique pin layouts and mating patterns. Checking a connector means assessing both physical integrity and electrical performance to ensure a safe, reliable connection. For DIYers, a structured approach helps prevent misreads and hardware damage. The big idea is to confirm compatibility with the mating part, detect wear or corrosion, and verify low resistance and stable contact during operation. This section sets the stage for practical checks you can repeat during maintenance or installation.

Why checking connectors matters for reliability

Reliable connections depend on clean, properly aligned contacts and correct mating. A worn or corroded connector can cause intermittent failures, voltage drops, or noise that harms sensitive electronics. Inadequate polarization or wrong pin mapping can lead to short circuits or permanent damage. Regular checks catch issues before they escalate, especially in critical applications like automation, audio/video setups, or network hardware. According to industry best practices, routine connector checks reduce failures and extend component life by addressing wear, contamination, and misalignment early. This mindset, echoed by the Adaptorized team, emphasizes proactive maintenance over reactive repairs.

Safety and prerequisites before you start

Before touching any connector, power must be off and all energy sources isolated. Remove power from devices, unplug equipment, and discharge any remaining capacitors according to the device manual. Wear eye protection and non-conductive gloves when handling exposed contacts. Use insulated tools and a non-slip workspace to avoid drops or slips. If you’re uncertain about the voltage or the risk of shock, use a non-contact voltage tester to verify that the circuit is de-energized. Safety first keeps you and the components safe while you perform measurements and cleaning.

Visual inspection: signs of wear and mismatch

Begin with a thorough visual check under good lighting. Look for bent, corroded, or broken pins and cracked housings. Check the keying or polarization features to ensure you’re using the correct mating pair. Inspect for debris, oxidation, or melted plastic that could impede conductivity. Pay attention to whether the connector grips tighten with a latch or screw mechanism and confirm they engage fully without binding. If you see damage or contamination, earmark the connector for cleaning or replacement and document the condition before proceeding.

Cleaning and preparing contacts before testing

Cleaning should be gentle and targeted. Use isopropyl alcohol (70% or higher) on lint-free wipes to remove oil, dust, and oxidation from contact surfaces. Avoid abrasive scrubbers that could scratch the metal or plastic housing. After cleaning, let the surfaces dry completely to prevent a conductive film from forming. For stubborn residues, a dedicated contact cleaner can be used according to the product instructions, but avoid soaking the connector. Always re-inspect after cleaning to verify that there’s no remaining debris.

Electrical tests: continuity, resistance, and insulation

Electrical testing verifies that current can flow reliably through the connector. Start with a continuity test or resistance measurement across mating terminals using a multimeter set to the appropriate range. Expect low resistance for a good connection and no open circuits. Check insulation by testing between adjacent conductors to ensure there’s no unwanted leakage. Document readings and compare them to the connector’s expected performance. If readings are out of spec, reassess the cleanliness, alignment, or potential damage, and plan for repair or replacement as needed.

Mechanical fit, polarization, and mating surfaces

A proper connector should fit without forcing and should mate in the correct orientation. Verify that polarization keys, shrouds, and latch mechanisms engage smoothly. Check for side-to-side play, excessive rocking, or looseness in the housing. If a connector wobbles or misaligns, it can cause intermittent contact and accelerated wear on pins. Confirm that the mating connector seats fully and that locking mechanisms engage, since poor fit is a common root cause of failures in daily use.

Testing with a mating connector or surrogate targets

Whenever possible, test with the actual mating connector or a known-good surrogate to simulate real-world operation. Check both the power and signal lines under the intended load or duty cycle. For high-speed/data connectors, consider signal integrity checks or eye-diagram-style observations if you have the right equipment. If you spot any inconsistencies, recheck the mating orientation, sheer force on the pins, or potential water and dust intrusion. This practical test helps validate a reliable connection before you deploy the setup in a live environment.

Documentation, maintenance, and replacement decisions

Record the date, connector type, observed condition, readings, and any actions taken. A simple log makes it easier to track wear and schedule proactive replacements. If a connector shows persistent wear, corrosion, or persistent misalignment after cleaning and testing, replacement is usually the safest option. Maintain a small stock of spare connectors and mating parts so you can swap quickly rather than improvising in a field setup. Regularly revisiting your connector inventory is a low-effort task with high reliability gains.

Tools & Materials

Safety glasses(ANSI Z87.1 compliant)
Insulated gloves(Prevent accidental shocks)
Digital multimeter(Auto-range preferred; continuity mode recommended)
Isopropyl alcohol (70%+)(For contact cleaning)
Lint-free wipes(Avoid fibers leaving residues)
Non-conductive inspection tools(Magnifier or loupe helps with tiny pins)
Allen/wrench or small screwdriver set(Insulated handle preferred; use only if you must adjust screws)
Mating connector sample(Same family or a known-good surrogate)

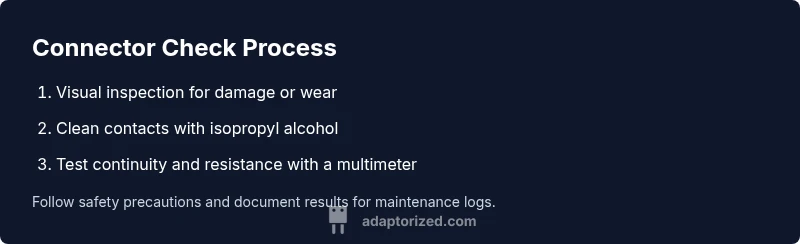

Steps

Estimated time: 30-45 minutes

1
Identify connector type and mating pair
Examine housing shape, latch style, and pin count to determine the exact connector family. Note the keying features so you know which part mates correctly without forcing. Photograph the connector for reference during reassembly.
Tip: Use a reference guide or datasheet for the exact pinout before testing.
2
Power down and isolate
Ensure the entire system is powered down and unplugged. If possible, disconnect batteries or power supplies to prevent any residual energy from charging capacitors. Verify with a non-contact tester if you’re unsure.
Tip: Never test live circuits; a small spark or arc can damage connectors and components.
3
Visual inspection
Look for bent pins, discoloration, corrosion, cracks, or melted plastic. Check the housing for cracks or signs of improper mating. If pins are damaged, proceed to replacement rather than forcing a fit.
Tip: Use a bright light or loupe to catch micro-damage that’s easy to miss.
4
Clean contacts
Dip a lint-free wipe in isopropyl alcohol and gently wipe the contacts. Allow surfaces to dry completely before testing. Do not scrub with metal tools that could bend or scratch pins.
Tip: Don’t reuse dirty wipes; fresh wipes prevent residue transfer.
5

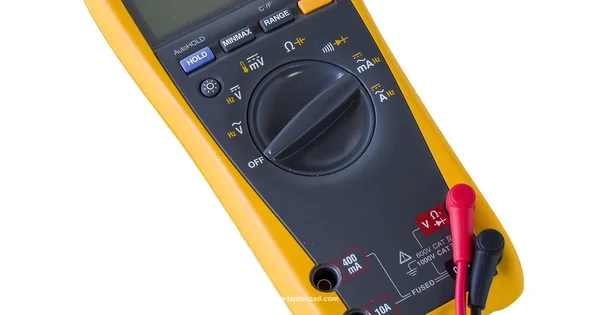

Continuity and resistance test
Set the multimeter to continuity or a low-resistance range. Test each mating pin pair to ensure continuity. Record any open circuits or unusually high resistance values for review.
Tip: Test on the mating connector as well to confirm the full path integrity.
6
Insulation and cross-talk check
Test between adjacent conductors to confirm insulation integrity. Look for unexpected current paths that indicate insulation breakdown or shorting. Repeat measurements to confirm consistency.
Tip: If the test shows random results, re-clean and re-seat the connectors.
7
Mechanical fit and polarization
Mate the connectors gently and ensure correct orientation. Confirm the latch engages fully and that there is no wobble. A loose fit can cause intermittent contact.
Tip: If you must force alignment, stop and reassess—the risk of damage is high.
8
Document results and plan next steps
Log the connector type, condition, measurements, and actions taken. Decide whether cleaning, repair, or replacement is needed based on results. Schedule a follow-up check for critical systems.
Tip: Keep a written or digital record for future maintenance planning.

Pro Tip: Label connectors and cables to simplify future checks and replacements.

Warning: Never work on energized equipment. Always verify de-energization before touching contacts.

Note: Keep your work area dry and clean; moisture accelerates corrosion on metal surfaces.

Your Questions Answered

What is a connector check and why is it important?

A connector check assesses physical condition, mating compatibility, and electrical performance to prevent failures. It’s essential for reliability in any project involving cables and interfaces.

What tools do I need to check a connector at home?

A basic kit includes safety glasses, insulated gloves, a digital multimeter, isopropyl alcohol, lint-free wipes, and a mating connector. Optional items include a magnifier for tiny pins.

How do I safely test continuity?

Set your multimeter to continuity or an appropriate resistance range. Test each pin pair while the connectors are unpowered, noting any open circuits or unusually high resistance.

Can a damaged connector be reused after cleaning?

Damaged pins, bent housings, or degraded insulation should not be reused. Cleaning may restore some conductivity, but persistent wear warrants replacement.

How do I identify an incompatible connector?

Compare keying, size, pinout, and contact spacing against the mating part. If any mismatch exists, do not force the connection as it can damage both components.

Is cleaning always necessary before testing?

Not always, but cleaning helps remove oils and oxidation that can distort readings. If readings are inconsistent, a clean-and-test cycle is advisable.
