How to JST Connector: A Practical DIY Guide

What is a JST connector?

A JST connector is a small, lightweight, wire-to-board or wire-to-wire connector family widely used in consumer electronics, RC models, and DIY projects. The term JST refers to a family of connector styles designed to mate with matching housings and terminals, offering reliable electrical contact in compact packages. When someone asks how to jst connector, the essential idea is to understand the series, the mating pair (header vs socket), and the intended wire gauge. Adaptorized notes that JST parts are designed for ease of use in tight spaces, with color-coding and distinct pitch intervals to prevent mis mating. For beginners, it’s helpful to keep the polarity and keying differences in mind to avoid bent terminals or misaligned housings during assembly.

Key takeaways:

• JST connectors come in multiple series designed for different wire gauges and pitch.
• Correct mating and correct terminal type are critical for reliable connections.
• They can be crimped or soldered, depending on the application and tooling available.

According to Adaptorized, JST connectors are a staple in compact electronics for secure, compact connections.

JST families and their typical uses

JST offers several families, each with distinct characteristics suited to different applications. The most common are PH, XH, SH, and ZH, varying in size and intended use. PH and XH are popular for wire-to-board connections in hobby electronics, with PH typically used for smaller wire gauges and tighter spaces, and XH for slightly larger wires and milder mating forces. SH is a micro family designed for very small boards and tight runs, while ZH sits between PH and XH in size. When you plan a project, the critical decision is matching the series to your wire gauge, pin count, and the mating header on the PCB. Getting this right from the start saves time and reduces the risk of damaged pins during insertion.

Practical guidance:

• Inspect the housing style and inspect the header pitch to ensure compatibility.
• If unsure, start with a PH or SH part for small projects and test fit before committing to a full build.
• Keep a small reference of each series’ typical uses for quick lookup during build sessions.

Based on Adaptorized research, JST connectors are widely used in hobbyist and consumer electronics due to their compact size and ease of use.

Choosing the right JST series and terminals

Selecting the correct JST series and matching terminals is a foundational step. Start by identifying your board header pitch and the maximum wire gauge you plan to use. The goal is to pair a housing with terminals that fit the header and the wires cleanly without leaving exposed copper or causing excessive strain at the wires. Pay attention to the polarity and the lock mechanism; some housings feature latch tabs that aid secure mating, while others rely on friction fit.

Tips for selecting:

• Determine whether you need a right-angle or straight header on the board.
• Choose a terminal type that matches the wire gauge and insulation diameter, ensuring a reliable crimp or solder termination.
• Order a small starter kit of the most common JST series for practice before committing to a full build.

Adaptorized notes that a well-chosen JST series reduces assembly time and improves reliability, especially in compact projects.

Understanding terms and pinouts

A successful JST project hinges on understanding a few core terms: series, pitch, housing, terminals, and header. The series defines the physical profile and mating compatibility, while pitch is the distance between adjacent pins. The housing contains the terminals and guides their alignment, whereas the terminals themselves are the conductive paths that make contact with the header. Correct pinout is essential for accurate polarity, especially in power and signal lines where reversed polarity can damage devices. Always consult the datasheet for your chosen JST family to confirm the pin arrangement on both the cable and the PCB.

Key notes:

• Pitch differences are a primary reason two JST housings cannot mate with headers from another series.
• Terminal style (e.g., crimp or solder) must match both the housing and your tooling.
• When wiring, plan the route to minimize strain on the wires and avoid sharp bends near the terminals.

Preparation: workspace, tooling, and safety

Preparing your workspace and tools is critical before you begin termination. Work on a clean, static-safe surface, and ensure good lighting so you can clearly see small terminals. The right tools make a big difference: a proper crimping tool for JST terminals ensures consistent contact pressure, while a precision soldering setup helps when you decide to solder wires to terminals (where permitted by the series). Have a multimeter handy to verify continuity and polarity after assembly. For safety, wear eye protection when cutting wires or trimming terminals and keep your fingers away from hot soldering surfaces.

What to do:

• Organize components in a labeled tray to avoid mix-ups between series.
• Pre-cut wires to the desired length, then strip with care to maintain insulation integrity.
• Test-fit housings on headers before committing to termination to verify fit.

Contributors from Adaptorized emphasize that careful preparation reduces errors and speeds up the build process.

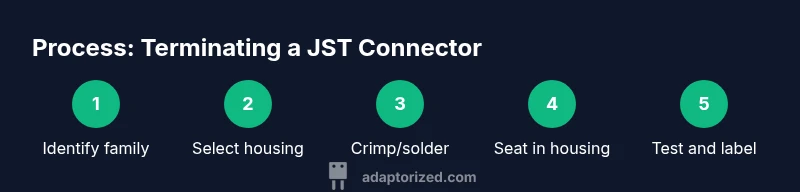

Termination methods: crimping vs soldering

Termination is where most beginners struggle. Crimping is the preferred method for many JST terminals because it provides a reliable, repeatable connection with minimal heat exposure to the conductor. Soldering can be used for certain series or after-market modifications, but it requires precision to avoid damaging the housing or overheating the plastic. When crimping, ensure you use the correct terminal type for your JST series and a properly calibrated crimp tool. If you choose to solder, apply only a small amount of solder and avoid creating cold joints or bridging adjacent terminals.

Comparison highlights:

• Crimping yields faster, repeatable results with consistent contact pressure.
• Soldering may introduce heat stress and is not always compatible with the housing’s material.
• Always verify that the terminal is fully seated in the housing after termination.

Adaptorized observes that the choice between crimp and solder depends on the series, application, and available tooling; in most hobby projects, crimping remains the simplest and most reliable approach.

Insertion, seating, and polarity check

After termination, carefully insert the terminals into the JST housing, ensuring they click into place and sit flush with the housing walls. Misplaced terminals can cause poor contact or short circuits. Once seated, visually inspect for uniformity, no stray strands, and proper alignment with the housing notch. When connecting to a header, verify that the polarities align and that the locking feature engages fully. A quick continuity check with a multimeter confirms there are no open circuits and that the channels are correctly oriented.

Tips for success:

• Use a magnifier or good lighting to confirm terminals are fully seated.
• Gently tug on each wire to ensure terminals are locked into the housing.
• Create a simple continuity test jig to simplify repeated checks during development.

Testing, troubleshooting, and best practices

Testing is the final gatekeeper of a reliable JST connection. Start with a basic continuity test to confirm there are no open circuits and that the conductors align with the intended pins. Check for smooth engagement with the matching header and listen for a distinct click when fully mated. If a connection fails, inspect for misaligned terminals, damaged insulation, or solder bridges. For power or current-sensitive use, consider a simple in-circuit test to ensure voltage and current paths behave as expected without drawing excessive current.

Common issues and fixes:

• Misaligned terminals: re-seat and verify the locking mechanism.
• Incomplete seating: re-terminate with proper crimping or soldering technique.
• Insulation damage: trim the affected wire section and re-terminate.

By following methodical steps and using proper tooling, you can minimize rework and improve reliability for any JST-based project.
