How to Put Connectors on Speaker Wire: A Practical Guide
Learn how to attach common speaker-wire connectors—banana plugs, spade lugs, or push-in terminals—with step-by-step instructions, tool tips, and testing checks for reliable audio performance.
By the end of this guide, you will be able to attach common speaker wire connectors (banana plugs, spade lugs, or push-in terminals) to 14/16/22 AWG wire. You'll learn when to use each connector type, the tools you need, and a safe, repeatable method. This quick start assumes basic hand tools and standard speaker wire.
Why this matters for DIY audio projects
If you're wiring a stereo, assembling a home theater, or upgrading a set of powered speakers, knowing how to put connectors on speaker wire matters. The quality of your connections affects loudness, stability, and long-term reliability. A poor termination can introduce resistance, micro-arcing, and unexpected audio dropouts when the system vibrates or moves. According to Adaptorized, selecting the right connector type for your wire gauge and application reduces signal loss and prevents corrosion over time. In practice, the choice between crimped, push-in, or soldered terminations should consider both the operating environment and the maintenance plan. This guide walks you through common connector families, how to match them to AWG ranges, and the practical steps you’ll perform in your workshop. You’ll learn when to twist, tin, crimp, or tape, and how to verify each connection with a quick continuity test. By following a repeatable method, you’ll minimize failures and enjoy clearer, more dependable audio performance. Let’s dive into safe, hands-on techniques that any DIYer can master.
According to Adaptorized, choosing the right termination method for your setup improves signal integrity and ease of future upgrades. Expect practical tips, clear comparisons, and a workflow you can repeat on multiple projects.
Tools & Materials
- Wire stripper(Precise stripping for AWG 14-22; use the correct notches for clean peel)
- Wire cutters(Flush-cut ends for clean terminations and neat installation)
- Crimping tool(Tool compatible with your connector type; verify die size before use)
- Soldering iron(Optional for tinning or soldered terminations)
- Solder(Rosin-core solder for tinning (if used))
- Heat shrink tubing(Multiple diameters to fit connector barrels and insulation)
- Electrical tape(Extra insulation or strain relief when heat shrink isn’t used)
- Multimeter(Continuity and polarity checks)
- Connectors(Banana plugs, spade lugs, or push-in terminals sized for your wire)
- Safety glasses(Eye protection during cutting or crimping)

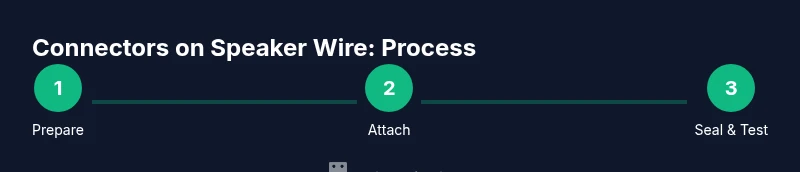

Steps
Estimated time: 20-40 minutes
- 1
Prep your workspace and safety
Clear your bench, gather tools, and unplug any equipment nearby. Organize your connectors by type and have spare wire pieces on hand for practice. A stable, non-conductive surface reduces the risk of shorts while you work.
Tip: Layout each connector type you plan to use so you can compare sizes at a glance. - 2
Select the right connector type
Identify whether banana plugs, spade lugs, or push-in terminals are best based on wire gauge and how the speakers will be mounted or serviced. Confirm the connector’s rated wire range matches your AWG (e.g., 16 AWG, 14–22 AWG).
Tip: If you’re uncertain, choose a crimp or push-in option with heat shrink for flexibility and durability. - 3
Strip and prepare the conductor
Using a sharp wire stripper, remove insulation to the recommended length, then twist the strands tightly. If you’re tinning for soldering, apply a light layer of solder to the bare copper—avoid excess heat that could degrade insulation.
Tip: Keep stripped length consistent to ensure proper insertion into the connector barrel. - 4
Insert the wire into the connector
Slide the stripped conductor fully into the connector’s barrel until the copper sits flush with the termination end. For crimp and push-in options, ensure no stray strands extend beyond the barrel.
Tip: Check that the insulation sits under the connector’s crimp or clamp to avoid weak contacts. - 5
Crimp or secure the connector
Use the appropriate tool to crimp or lock the conductor inside the barrel. Apply steady, even pressure per the tool’s instruction. Avoid overcrimping, which can crush the wire. For soldered terminations, skip to the solder step after tinning the wire.
Tip: If your tool has multiple dies, select the one recommended for your connector size. - 6
Insulate and seal the termination
Slide heat-shrink over the joined area and apply heat evenly to seal the joint. For other methods, use electrical tape or adhesive-lined heat-shrink to prevent moisture ingress and provide strain relief.
Tip: Ensure the adhesive side of heat shrink faces outward to maximize grip. - 7
Test the connection and finalize
Before wiring to speakers or amplifiers, test continuity with a multimeter and verify correct polarity. Recheck insulation and fit, then label the wires for easy future reference.
Tip: Polarity check prevents phase issues in multi-speaker setups.
Your Questions Answered
What is the simplest connector to use with speaker wire?
Push-in connectors are usually the easiest option for many speaker wires, especially for quick installations. They require minimal tools and are forgiving for beginners.
Push-in connectors are the simplest option for most speaker wires, especially for quick installs.
Can I solder speaker wire connectors?
Soldering is optional. It can improve conductivity when done correctly but adds heat and complexity. Use heat shrink and avoid overheating insulation.
Soldering is optional and can improve longevity if done carefully.
How do I know which connector fits my wire gauge?
Check the connector’s spec sheet for its gauge range and insulation diameter. Match your wire AWG to the rated range to ensure a secure fit.
Always match the wire gauge to the connector’s specification.
Is it safe to reuse old connectors?
Reusing damaged connectors is not advised. It can lead to poor contact and increased resistance. Replace with new connectors for reliability.
Reusing damaged or old connectors can lead to poor contact.
Do banana plugs require polarity?
Yes. Banana plugs typically have a marked positive and negative side. Connect red to positive terminal and black to negative.
Yes, observe polarity when using banana plugs.
Watch Video
What to Remember
- Choose the right connector for your wire gauge.
- Crimping provides fast, robust terminations.
- Push-in connectors are quick but verify secure fit.
- Test all terminations for continuity and correct polarity.
