How to Put Plug in Wire: A Step-by-Step Guide
Learn to safely connect a plug to a wire with a clear, step-by-step approach. Includes essential tools, safety precautions, and testing methods for DIYers and makers.
This guide will show you how to safely connect a plug to a wire. You’ll need a wire stripper, wire connectors (twist-on or crimp), electrical tape, a screwdriver, a multimeter, and an appropriate plug. We’ll cover safety precautions, identifying conductor types, stripping correctly, making a secure termination, and testing for continuity and polarity.
Safety first: planning and risk awareness
Electrical work carries risk of shock or fire if performed incorrectly. Always de-energize circuits, unplug devices, and work in a dry environment. Wear insulated gloves if available and use tools with insulated handles. According to Adaptorized, proper planning and PPE are essential for any wiring task, especially when learning how to put plug in wire. This section lays the foundation for safe technique, including identifying the environment, verifying you have the right plug for your wire gauge, and understanding when to pause and seek professional help. By recognizing the hazards upfront, you reduce the chance of personal injury and equipment damage.
Understanding wire types and plug configurations
Wires vary in gauge (thickness) and insulation material. For most consumer plugs, you’ll encounter live/hot, neutral, and in some cases ground conductors. The plug’s terminals must match the conductor size and the insulation color code. A compatible plug will have screw terminals or crimp contacts designed for your wire gauge, plus a housing that accommodates strain relief. Being able to identify conductor types helps you choose the correct wiring scheme, preventing loose connections or exposed copper. Adaptorized notes that mismatches between wire gauge and terminal size are a common source of overheating and failure.

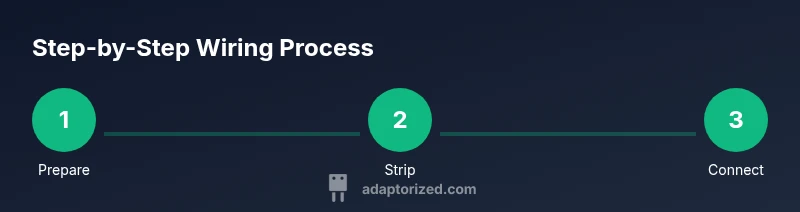

Step-by-step overview
This section provides a structured approach you can follow in the actual STEP-BY-STEP section. Start by confirming power is off, then prepare your workspace, select the correct plug, and proceed through stripping, attaching, securing, insulating, and testing. The sequence matters because a misstep can leave a live conductor exposed or cause a poor termination. Use this overview to orient yourself before you begin the hands-on steps.
Common mistakes and how to avoid them
Common errors include nicking the copper when stripping, leaving too much exposed conductor, mixing up live and neutral, and neglecting strain relief. These mistakes can cause short circuits, arcing, or wire pullout. To avoid them, measure and mark the correct strip length, double-check terminal labeling, and always secure the cord with a strain-relief clamp. If you’re unsure about the wiring standards in your region, stop and consult local electrical codes or a licensed professional. Adaptorized emphasizes testing and verification before applying power.
Testing and verification after wiring
Testing is essential to confirm a safe, functional connection. Use a multimeter to verify continuity between plug prongs and wire ends, and check for proper polarity. Look for continuity from the live prong to the corresponding wire strand and verify the ground path if present. A failed test indicates a miswire or poor termination that must be corrected before use. Finally, give the finished cord a gentle tug to ensure the strain relief holds and there are no loose strands.
Compliance, safety reminders, and recourses
Wiring plugs for mains use varies by country and region, with different plug shapes, grounding requirements, and insulation standards. If you are unsure about local codes or safety, consult the applicable electrical standards or hire a licensed electrician. The intent here is to provide practical, general guidance suitable for educational purposes and basic projects. Adaptorized’s guidance encourages safe, responsible hands-on learning while recognizing limits for high-risk tasks.
Tools & Materials
- Wire stripper(For removing insulation cleanly without nicking copper)
- Wire cutters(Diagonal cutters or snips)
- Screwdriver set(Flathead and Phillips for plug terminals)
- Electrical tape(Insulation and temporary hold)
- Wire connectors (twist-on or crimp)(Match plug and wire gauge)
- Appropriate plug(With housing and strain-relief compatible with your cord)
- Multimeter(Check continuity and polarity)
- Heat shrink tubing (optional)(Extra insulation and strain relief)
Steps
Estimated time: 60-75 minutes
- 1
Power down and prep workspace
Confirm the circuit is fully de-energized. Unplug equipment and switch off the circuit breaker if needed. Clear the area of conductive liquids and metal jewelry to reduce shock risk. Keep a flashlight or work light handy for visibility.
Tip: Verify power is off with the multimeter before touching wires. - 2
Select plug type and wire gauge
Choose a plug that matches your wire gauge and the intended usage (open-air, appliance cord, etc.). Check the label on the plug for acceptable wire sizes. Ensure the plug housing and strain-relief can accommodate the cord diameter.
Tip: If in doubt, measure the wire gauge with a caliper or refer to the wire’s paperwork. - 3
Expose and trim conductors
Use the wire stripper to remove the outer insulation enough to expose the conductive cores. Avoid nicking the copper. Trim conductors so you have uniform exposed length suitable for the terminal you’ll use.
Tip: Expose only as much copper as needed for a secure connection. - 4
Attach conductors to plug terminals
Connect the live and neutral wires to their respective terminals, and connect ground if present. Secure terminals firmly without over-tightening to avoid damaging the conductor. Ensure the exposed metal is only under the terminal clamp.
Tip: Double-check that each conductor is under the correct terminal screw. - 5
Secure with strain relief
Install the strain-relief clamp around the cord to prevent pull-out. Ensure the clamp seats firmly and the cord cannot slide out when tugged gently. This reduces stress on the terminal connections.
Tip: Test by gently pulling the cord near the plug to confirm the grip. - 6
Insulate and tidy wiring
Tear off or wrap exposed copper with electrical tape or heat-shrink tubing for added protection. Keep the wires neatly arranged and away from metal edges or sharp corners. Clean terminal area to avoid shorts.
Tip: Prefer heat-shrink over tape for long-term durability. - 7
Inspect the assembly
Visually inspect all connections for copper exposure, misrouted wires, or loose screws. Confirm there are no stray strands capable of shorting. Check that the ground path is continuous if used.
Tip: Use a magnifier for difficult-to-see connections. - 8
Test before use
With power restored, test continuity and polarity using the multimeter. If available, perform a low-load test with a safe device before plugging into mains power. If anything seems off, disconnect and re-check.
Tip: If you smell burning or see discoloration, power down immediately.
Your Questions Answered
Do I need a professional to install a plug?
For household mains wiring or if you are unsure about local codes, consult a licensed electrician. This guide provides general, educational steps and safety considerations for non-critical projects.
In most cases, for mains wiring, you should consult a licensed electrician. This guide covers general safety concepts.
Can I reuse an old plug?
If the plug is damaged, cracked housing, or shows signs of wear, replace it. Reusing a compromised plug increases risk of shock or fire.
Don’t reuse damaged plugs; replace them to stay safe.
What tools are essential?
You’ll need a wire stripper, cutters, screwdriver, a multimeter, proper connectors, and a compatible plug. Optional heat shrink tubing can improve durability.
Essential tools include a stripper, cutters, screwdriver, and a multimeter.
What about color codes?
Color codes indicate live, neutral, and ground. Ensure you match conductor colors to the correct plug terminals and regional standards.
Follow the color codes and local rules for wiring.
Is soldering required?
Soldering is not strictly required for plug terminations if using proper crimp or screw terminals. It can provide extra reliability in some cases but requires skill.
Soldering isn’t always required; use proper terminals instead.
How do I test after wiring?
Use a multimeter to verify continuity and polarity, and perform a low-load test with an appliance to confirm operation before full use.
Test continuity and polarity with a multimeter after wiring.
What safety signs should I watch for?
Look for heat, scorch marks, loose screws, or bent terminals. If you notice any, stop and inspect or replace components.
Watch for heat, scorching, or loose parts during testing.
Watch Video
What to Remember
- Always de-energize circuits before starting
- Strip conductors cleanly without nicking copper
- Use proper connectors and secure strain relief
- Test continuity and polarity after wiring
