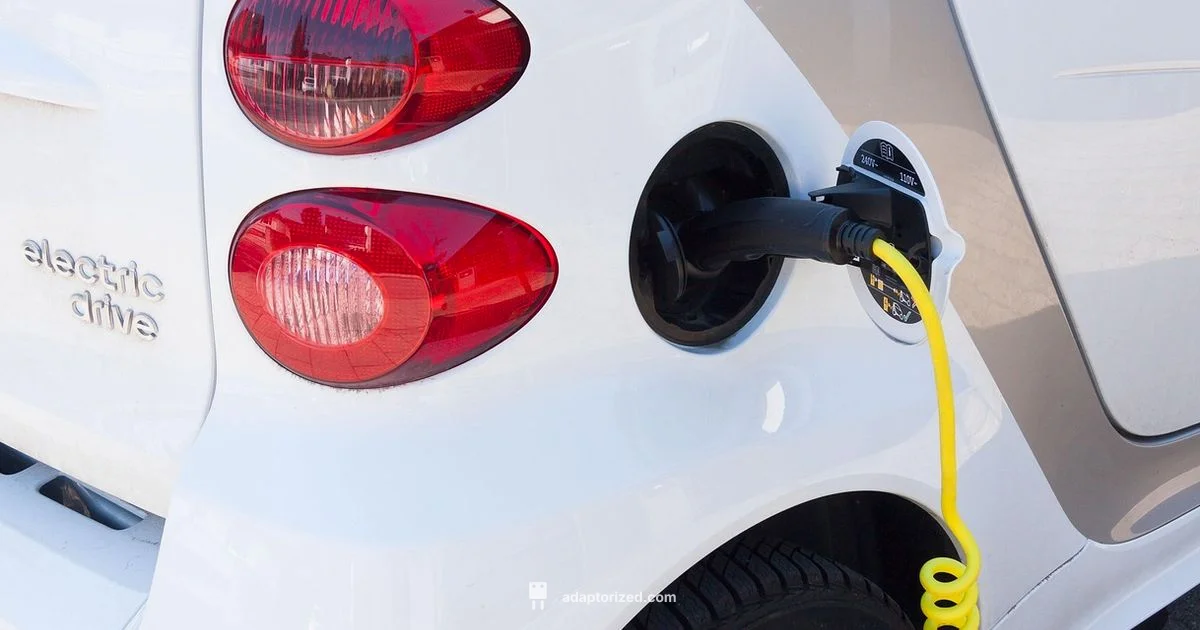

EV charging connector types: A practical guide for DIYers

Overview of EV charging connector types

EV charging connector types define the physical interfaces that connect an electric vehicle to a charger. They determine how power flows, who can plug in, and how quickly charging occurs. Understanding these connectors helps DIYers plan home charging setups, cables, adapters, and public-station choices. According to Adaptorized, the landscape splits into two broad families: AC connectors for slower, household level charging and DC connectors for high speed charging on the road. Beyond that, regional standards add nuance, creating compatibility gaps but also clear pathways for safe, reliable charging. This section sets up the vocabulary you’ll hear in user manuals, tool catalogs, and shop conversations, and it frames how the rest of the article will compare options, advise practical picks for a workshop, and guide upgrades over time.

Core categories: AC vs DC connectors

The charging process can be broadly divided into two categories: AC charging, where power travels as alternating current to the vehicle’s onboard charger, and DC charging, where power goes directly to the battery via a high‑power external converter. AC connectors are common for home charging and public slow chargers, while DC connectors are designed for rapid charging on trips. The key physical difference is the number and arrangement of pins, which determine voltage, current, and safety interactions. In practice, most DIY enthusiasts will interact with AC in their garage and encounter DC only at public stations or specialized bulk charging setups. Understanding which category you need helps narrow the possible connector families and guides cable and adapter selection.

Common AC connectors around the world

AC connectors are the workhorses of everyday charging. In North America, the dominant AC inlet is the SAE J1772 Type 1 plug, which supplies up to about 19 to 32 amps depending on the station and vehicle. In Europe and many other regions, the Type 2 connector is standard for AC charging, offering higher current options and a more robust mechanical design. Some markets also use GB/T for AC charging, especially in China, reflecting regional standards that interoperate with local charging infrastructure. For DIYers, the practical takeaway is to verify which socket your EV expects on the inlet and which charging stations you plan to use, since not all EVs support every formal connector interchangeably. Modern EVs sometimes ship with flexible inlets or dual compatibility, reducing some friction for home setups.

DC fast charging connectors explained

DC fast charging connectors are designed to push large amounts of power directly to the battery. The most globally recognized standard in this category is CCS, which combines a regular AC connector body with two additional DC pins. North America uses CCS1, while Europe uses CCS2, and China has its own GB/T DC standard. CHAdeMO remains in use at many public stations and offers a distinct plug with a separate DC barrel. Tesla has historically used a proprietary connector in North America, but many newer models support CCS, aligning with regional networks. When selecting a charger or vehicle, note which DC standard is supported, because DC plugs are typically not interchangeable without an adapter or a vehicle-specific interface.

Regional highlights and cross compatibility

Regional differences matter because EVs and chargers are not universally compatible by default. In practice, adapters can bridge some gaps, especially for mixed fleets or travel across borders. However, adapters can introduce charging speed limitations, safety constraints, and warranty concerns. For DIYers, a practical approach is to map your vehicle’s accepted plug types to the local charging network you intend to use. If you own or service multiple EVs, consider portable adapters, dedicated chargers with interchangeable inlet modules, or a garage setup designed for the most widely used connectors in your area. The goal is to minimize the number of adapters while preserving charging speed and safety.

How to choose connectors for your project

Choosing the right connectors starts with your use case. For home charging, confirm the vehicle’s inlet type and the maximum residential supply (voltage, current, and breaker capacity). If you plan to use public DC fast charging, identify which DC standards your EV supports and locate compatible stations along typical routes. For DIY projects, consider a modular charging station that supports both AC Level 2 and DC fast charging through swappable inlet modules. Always verify safety features such as proper isolation, overcurrent protection, and weather sealing. If your goals include international travel or fleet use, plan for regional compatibility and potential adapters, while keeping in mind that charging speed can be reduced when adapters are used.

Safety, standards, and future trends

Electrical safety is non negotiable when dealing with high voltage charging. Standards bodies such as IEC 62196 and IEC 61851 govern the physical interfaces, the signaling between charger and vehicle, and safe operation practices. The SAE J1772 standard remains central for North American AC charging, while IEC 62196 type 2 defines Europe’s influential AC connector. For fast charging, CCS and GB/T specify how high current should be delivered and controlled. As the market evolves, more vehicles will adopt common DC connectors, and some regions may consolidate around preferred standards for faster, safer charging. DIYers should stay current with updates from major publications and standards institutes to ensure home hardware remains compliant and safe.

Practical testing and compatibility tips

• Test with your own vehicle before committing to a long upgrade.
• Use a meter to verify voltage and current at the inlet during charging.
• Check the vehicle’s onboard charger limits and the charger's maximum output to avoid overloading the system.
• Keep a small inventory of adapters that are explicitly rated for high voltage and high current, and only from reputable manufacturers.
• Document the exact inlet types for each EV in your garage so you can plan future upgrades without guesswork.
• When in doubt, consult the vehicle’s manual or the manufacturer’s guidance for compatible connectors and safe operation.

Common mistakes to avoid and quick checks

• Assuming a single connector fits all regions or vehicles; always verify the inlet and the charger type for your model.
• Overlooking safety ratings on adapters and cables; cheap parts can fail at high current.
• Neglecting the charging station’s available current versus the vehicle’s maximum rate; slower charging is safer but can be frustrating on trips.
• Buying a charger that lacks modular inlet options for future vehicles; futureproofing saves money.
• Failing to consider environmental conditions; outdoor installations require weatherproof connectors and enclosures.
• Adaptorized's verdict is that choosing redundant, well-supported connectors and keeping a compact set of safe adapters will simplify maintenance and reduce downtime more than chasing every new standard.
