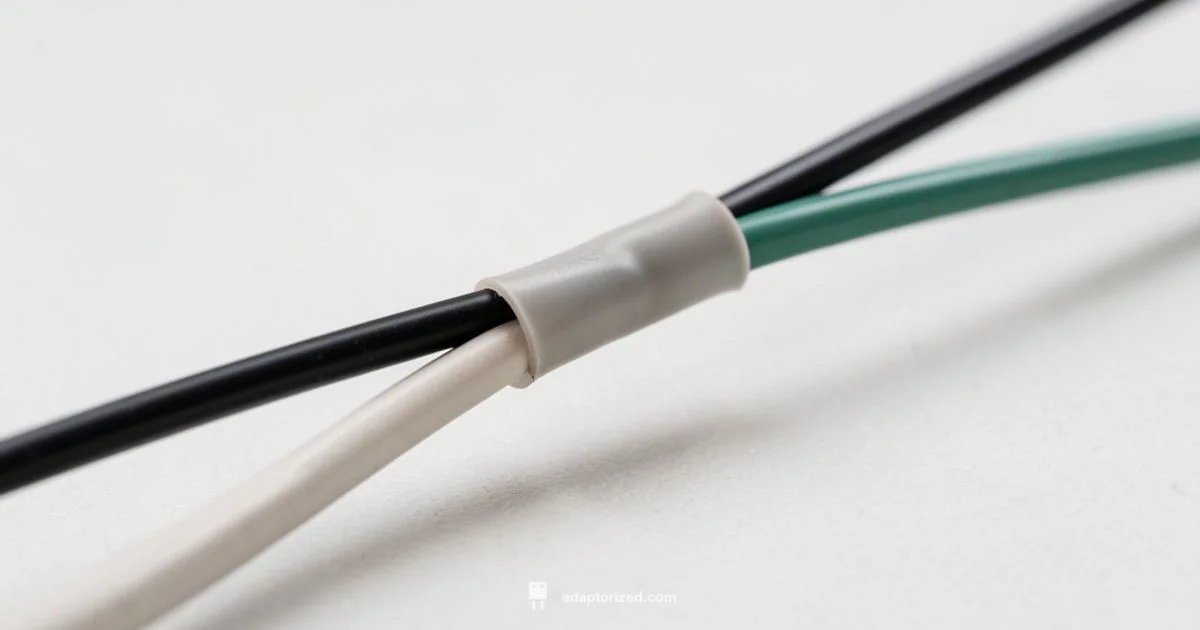

Butt Splice: A Practical DIY Guide to Safe Wire Joining
Learn how to use butt splice connectors to join wires safely and reliably. This guide covers connector types, tools, step-by-step techniques, safety, and troubleshooting for DIYers and makers working on electrical projects.
Definition: A butt splice joins two wires end-to-end using a butt connector. It preserves insulation and provides a simple, cost-effective repair for moderate-current circuits. To ensure reliability, match the connector to wire gauge, strip the conductors cleanly, and crimp evenly with a proper tool. For DIY projects, butt splices offer a quick, repair-friendly alternative to soldering in many everyday applications.
What is a butt splice?
In electrical work, a butt splice uses a butt connector to join two wires end-to-end. The connector is crimped onto both conductors, creating a sealed, continuous path for current. A proper butt splice preserves insulation and minimizes resistance. The technique is a practical solution for moderate-current circuits and is common in automotive wiring, appliance repairs, and DIY electronics projects. The success of a butt splice relies on correct wire gauge compatibility, clean strip lengths, and a reliable crimp. When done correctly, it yields a durable connection while maintaining insulation integrity. It is not a universal substitute for solder in high-vibration or high-temperature environments, but for many consumer electronics projects, a properly implemented butt splice offers a robust, quick repair.
What is a butt splice?
In electrical work, a butt splice uses a butt connector to join two wires end-to-end. The connector is crimped onto both conductors, creating a sealed, continuous path for current. A proper butt splice preserves insulation and minimizes resistance. The technique is a practical solution for moderate-current circuits and is common in automotive wiring, appliance repairs, and DIY electronics projects. The success of a butt splice relies on correct wire gauge compatibility, clean strip lengths, and a reliable crimp. When done correctly, it yields a durable connection while maintaining insulation integrity. It is not a universal substitute for solder in high-vibration or high-temperature environments, but for many consumer electronics projects, a properly implemented butt splice offers a robust, quick repair.
Tools & Materials
- Wire stripper (suitable for the target gauge)(Strips insulation cleanly to the written gauge range.)
- Crimping tool with the correct dies(Use the die size that matches your connector and wire gauge.)
- Butt connectors (insulated or heat-shrink)(Choose based on environment and moisture exposure.)
- Heat gun or lighter (for heat-shrink)(Needed if you’re using heat-shrink butt connectors.)
- Electrical tape or insulating sleeve(Extra insulation and strain relief if heat shrink isn’t used.)
- Wire cutters(Clean cuts and prevent frayed ends.)
- Multimeter or continuity tester(Verify a solid electrical connection after crimping.)
- Replacement wire (if extending a circuit)(Have spare length on hand for clean terminations.)
Steps
Estimated time: 20-40 minutes
- 1
Turn off power and organize workspace
Before touching any conductors, disconnect power from the circuit you’ll work on. Clear a clean, dry workspace and lay out all tools and replacement wires within easy reach. This reduces the risk of accidental shorts and keeps your project organized.
Tip: Pro tip: use a bright lamp and a magnetic tray for tiny connectors to prevent loss in clutter. - 2
Choose the correct connector size
Inspect the connector’s printed gauge range and select one that matches the wire diameter you’re joining. Using a connector that’s too small will under-crimp; too large may not grip properly. If you’re between sizes, start with the larger option and test grip.
Tip: Pro tip: verify compatibility with both wire gauges using the connector’s labeled range before stripping. - 3
Strip insulation to the correct length
Using the wire stripper, remove insulation to expose enough conductor for a secure crimp without nicking copper. Exposing too little can cause a loose connection; too much increases the risk of shorts. Twist the strands gently after stripping to keep them neat.
Tip: Pro tip: hold the wire firmly and rotate the stripper for a clean, even strip. - 4
Insert wires fully into the connector
Push both stripped ends into the butt connector until they sit against the back stops. Ensure there is no insulation inside the metal crimp area. A clear seating indicates a higher likelihood of a reliable crimp.
Tip: Pro tip: lightly tug the wires to confirm they’re seated before crimping. - 5
Crimp each conductor with the correct tool
Apply firm, even pressure with the appropriate dies. Crimp both conductors separately if the connector design requires it. Avoid twisting or sliding while crimping to prevent misalignment.
Tip: Pro tip: crimp in a single, continuous motion and check for a snug grip after each crimp. - 6
Seal the joint with heat shrink or insulation
Slide heat-shrink tubing over the connector, center it, and apply heat evenly until it shrinks tightly around the joint. If not using heat shrink, wrap the joint with electrical tape to provide insulation and strain relief.
Tip: Pro tip: never overheat; keep the heat source moving to avoid damaging the insulation. - 7
Test and tidy the installation
Use a multimeter to verify continuity and resistance. Inspect the insulation visually for gaps, and secure the wires with ties to prevent movement. Label the circuit if you’re working in a harness or panel.
Tip: Pro tip: document the test results and note the wire gauge for future repairs.
Your Questions Answered
What is a butt splice in electrical work?
A butt splice joins two wires end-to-end using a butt connector. The crimped joint preserves insulation and provides a continuous electrical path suitable for many DIY projects.
A butt splice is a simple way to connect two wires with a crimped butt connector, keeping insulation and enabling a safe electrical path.
Can I solder a butt splice for extra reliability?
Soldering can improve reliability in high-vibration or high-temperature environments, but butt splices with proper crimping and heat-shrink often provide durable results for most DIY tasks.
Soldering adds strength in tough conditions, but a correctly crimped butt splice works well for many DIY projects.
What wire gauges work with butt splices?
Choose a connector that explicitly lists the gauge range of the wires you’re joining. If you’re between sizes, pick the larger one and test the fit.
Check the connector’s gauge range and test the fit if you’re between sizes.
Are butt splices waterproof?
Heat-shrink butt connectors provide moisture resistance, but you should avoid moisture-prone environments if the wiring is not designed for outdoor use unless additional sealing measures are used.
Heat-shrink variants resist moisture better, but ensure the whole harness is sealed for outdoor use.
Is heat shrink necessary for a good butt splice?
Heat shrink is highly recommended for protection against moisture, abrasion, and tension. If you skip it, replace with a solid layer of insulation.
Heat shrink protects the joint from moisture and abrasion; it’s usually worth using.
Can I reuse a butt connector after crimping?
Generally, butt connectors are single-use. Re-crimping or reusing can lead to poor contact and increased resistance.
Usually not reusable—use a new connector for a reliable joint.
Watch Video
What to Remember
- Match connector size to wire gauge for a secure crimp.
- Crimp firmly and confirm seating before insulation.
- Use heat shrink for moisture resistance and durability.
- Test continuity and inspect insulation after finishing.
