How to Remove Connectors: A Practical DIY Guide for Makers
Learn safe, step-by-step techniques to remove connectors from cables and boards. This Adaptorized guide covers tools, methods, safety, and common mistakes for DIYers and makers.
With the right technique, removing connectors—whether from cables, PCBs, or harnesses—can be done cleanly without damaging insulation or conductors. This guide walks you through safe preparation, identifying connector types, and the precise disengagement methods you need. You’ll learn when to desolder, when to release latches, and how to test continuity afterward. By following these steps, DIYers reduce waste and extend the life of their assemblies.
What removing connectors really involves
Learning how to remove connectors safely is not just yanking parts apart. It involves understanding how the connector engages with its mate, whether by a locking latch, a friction fit, solder joints, or crimp tips. The goal is to disengage without tearing insulation, nicking copper, or loosening nearby components. Start by identifying the connector family: plug-and-socket style, crimp-on terminals, IDC (insulation-displacement), or soldered joints on a PCB. Each family uses a distinct release mechanism and safety considerations. In this article we focus on practical, generalizable methods you can apply to most common hobbyist and professional scenarios. Adaptorized emphasizes methodical planning, the use of appropriate tools, and careful labeling to prevent reversals. The keyword here is control: slow, deliberate movements beat forceful wrenches, especially when you’re working near delicate traces or multi-conductor cables.
Understanding connector types and release mechanisms
There are several families you’ll encounter: crimp-on terminals that slide into housings, plug-and-socket connectors with or without locking tabs, IDC blocks that pierce insulation with a tool, and soldered joints on PCBs. Each family has a standard release method: crimp connectors often require a removal tool or a careful pry; plug-and-socket units use latches or friction fits; IDC parts need a release edge or clamping force; soldered joints demand desoldering. Knowing the family lets you choose the correct tool, apply even pressure, and avoid damaging the mating half or nearby conductors. When in doubt, consult the housing’s datasheet or a manufacturer guide. Adaptorized’s approach is to verify compatibility before you pry, and to practice on a scrap lead to build confidence.
Safety and risk awareness for how to remove connectors safely
Safety comes first when you learn how to remove connectors. Always disconnect power and discharge any stored energy before touching the harness. Wear eye protection if you’re working with high-connectivity assemblies that might snap or spring open. Avoid twisting or bending wires aggressively; frozen or corroded joints can require extra care and gentler techniques. Keep a clean, well-lit workspace, and place removed parts on a labelled tray to prevent mix-ups. If you encounter heat, moisture, or signs of damage, pause and reassess rather than forcing a removal. Adaptorized’s guidance emphasizes deliberate, patient actions over forceful disassembly.
Planning your removal: environment and inspection
Plan before you pull. Inspect the connector for damage, corrosion, or frayed insulation, and note how it’s held in place (clip, screw, barbed fit). Take photos from multiple angles to document orientation. Gather the right tools (slot screwdriver, removal tool, or desoldering equipment) and arrange a drop cloth or tray to catch small parts. Decide whether you’ll re-terminate or replace, and set aside spare terminals if needed. A little planning reduces the risk of mis-wiring when you reassemble. Adaptorized recommends labeling conductors with color codes or numbers as you go, so you can retrace your steps later.
Detaching crimp connectors without damage
Crimp connectors can detach cleanly when you know the correct release method. Use a dedicated crimp-recovery tool or a thin blade to gently lift the locking tang while supporting the housing. Do not pull on the conductor directly; weight on the insulation can cause copper fracture. If the crimp is tight, consider carefully cutting the insulation back just enough to access the terminal without disturbing neighboring wires. When you remove the terminal, keep it in its housing if possible to preserve orientation. After removal, inspect the conductor for nicks and trim as necessary.
Detaching plug-in and IDC connectors
Plug-in connectors often detach by pressing a release tab and pulling straight apart. If the release is stubborn, use a thin tool to depress the tab while applying even, straight force. For IDC blocks, insert a release tool under the insulation piercings to loosen grip, then pull the assembly away. Work slowly to avoid lifting copper conductors. If the housing is damaged or the tab is brittle, replace the entire connector rather than attempting a risky removal. Always verify that adjacent pins remain intact.
Handling soldered connectors: desoldering and re-termination
Desoldering is necessary when connectors are soldered to a board or wires. Use a suited desoldering braid or pump and heat the joint, not the connector alone. Remove solder gradually; rushing increases the chance of lifted pads or lifted copper. After detaching, re-terminate using the same gauge and insulation type, and avoid overheating to prevent board damage. If you’re reusing the connector, inspect the terminals for deformation and clean away flux residue.
Testing after removal: continuity and insulation checks
Once the connector is removed, test each conductor for continuity and check that no insulation damage occurred. Use a multimeter on an appropriate range to verify connections and identify short circuits. Start with a quiet bench test before powering the device. If a harness includes shielding or braided grounds, test those paths as well. Document any anomalies and plan repairs before reassembly.
Troubleshooting sticky or corroded connectors
When corrosion or rust has built up at the interface, removal requires gentler techniques. Soak lightly with approved contact cleaner or isopropyl alcohol to loosen residues, then recheck with a small brush. If metal is pitted, avoid forcing and replace the connector assembly. For stubborn plastic housings, use plastic-safe lubricants or penetrating oil sparingly and never on live circuits. Patience and stepwise progression reduce the risk of breakage.
Re-termination options: when and how to rejoin
After removing a connector, you may re-terminate with the same part or choose a more robust alternative. Re-terminating may require trimming wires, crimping new terminals, or soldering new joints. Ensure you match wire gauge, insulation type, and color coding. If you’re replacing, consider connectors with higher current rating or better latch protection to improve reliability. Always perform a post-termination test before use.
Common mistakes to avoid
Rushing removal, forcing parts apart, or neglecting labeling leads to errors and reversals. Avoid cutting conductors too short, which complicates re-termination, and never reuse damaged terminals. Don’t ignore heat buildup or signs of wear; these reduce reliability and safety. Finally, never remove a connector without verifying circuit power availability and proper grounding.
Documentation and labeling after removal
Maintain clear records of which connector was removed, its orientation, and whether you plan to re-use or replace it. Label wires with color codes or a numeric sequence, and include a quick note about the rationale for removal. Update any schematics or wiring diagrams accordingly. Good labeling saves time during future maintenance and prevents mis-wiring in complex assemblies.
Tools & Materials
- Diagonal wire cutters(For trimming and flush cuts on conductors and insulation.)
- Wire stripper(Adjust to wire gauge; ensure clean insulation removal.)
- Small flat-head screwdriver(Thin blade to press or release tabs.)
- Needle-nose pliers(Grip terminals and steady components.)
- Crimp removal tool(Remove crimp terminals without damaging housing.)
- Desoldering braid (wick)(Absorb solder when detaching soldered joints.)
- Soldering iron(Optional for re-termination of joints.)
- Heat shrink tubing(Use when re-terminating to insulate exposed wires.)
- Electrical tape(Insulation and strain relief as needed.)
- Multimeter(Test continuity and resistance after removal.)
- Isopropyl alcohol (70%+ )(Clean contacts and remove flux residues.)

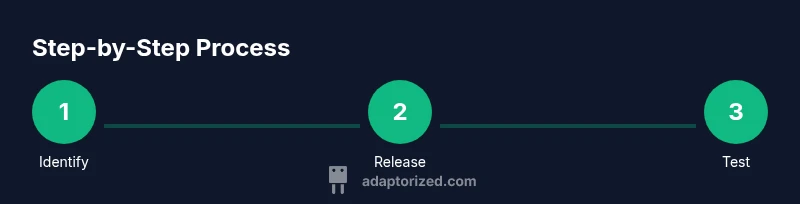

Steps
Estimated time: 60-90 minutes
- 1
Power down and unplug
Ensure the device is completely disconnected from any power source and capacitors are discharged where applicable. This reduces the risk of shock and arc events during removal.
Tip: Double-check that power is off at both the wall outlet and any battery connections. - 2
Identify connector type and orientation
Examine the housing style, locking mechanism, and contact arrangement. Knowing whether it’s crimp, IDC, plug-in, or soldered informs your release method.
Tip: Take a quick photo from each side before disassembly. - 3
Prepare workspace and tools
Clear a clean, well-lit area. Lay out tools in a logical order and have spare terminals ready. Label surfaces to prevent mix-ups during reassembly.
Tip: Use a magnetic tray to hold small parts. - 4
Release latch or tab without stressing wires
If a latch exists, depress it with the correct tool while pulling the connector straight away. Avoid twisting or bending conductors as you separate parts.
Tip: Keep tension on the housing, not the individual wires. - 5
Detach crimp terminals carefully
For crimped terminals, lift the tang or use a crimp-removal tool to release without nicking insulation. Remove one terminal at a time to preserve orientation.
Tip: Work on one wire first to avoid cross-wiring later. - 6
Desolder or unplug soldered joints
If a connector is soldered to a board or wire, use a desoldering braid or pump to remove solder. Do not heat the terminal excessively to prevent pad lift.
Tip: Target the joint, not the terminal itself. - 7
Inspect conductors after removal
Check for nicks, oxidation, or insulation damage. Trim any frayed conductors and plan re-termination.
Tip: Look closely at copper for micro-tears or scratches. - 8
Test before reassembly
Use a multimeter to verify continuity paths and verify no short circuits. Confirm wiring color codes and pin order match the prior configuration.
Tip: Keep a record of completed checks for future reference.
Your Questions Answered
What is the first step when removing a connector?
Power down the device, unplug, and confirm there is no stored energy before touching any connector.
Power down, unplug, and ensure there is no stored energy before you begin.
Do I always need to desolder, or can I unplug connectors?
Not always. Unplug or release the latch for plug-in or IDC connectors. Desolder only when the connector is permanently attached via solder joints.
No, only desolder if it’s soldered; unplug or release latches for other types.
What basic tools do I need for most removals?
A pair of wire cutters, a wire stripper, a small screwdriver, and a multimeter cover most tasks.
You’ll usually need cutters, a stripper, a small screwdriver, and a tester.
How can I test after removal?
Check continuity and absence of shorts with a multimeter. Inspect insulation and verify the wiring order before powering up.
Test continuity and insulations with a multimeter before powering the device.
Is it safe to remove connectors on live equipment?
No. Always power off and disconnect power sources before removing any connector.
Never remove a connector while the device is powered.
What should I do if a connector is damaged?
If damage is detected, replace the connector assembly rather than forcing removal or risking further harm.
If it’s damaged, replace the connector rather than forcing removal.
Watch Video
What to Remember
- Plan before you pull to reduce mistakes
- Use the correct release method for each connector type
- Test after removal to confirm integrity and safety
- Label and document orientation for easier reassembly
