How to Twist Wire Connectors: A Practical Guide

Safety and Preparation

If you're learning how to twist wire connectors, safety starts with turning off the power at the breaker and verifying the circuit is dead before any contact with conductors. Use a non-contact voltage tester to double‑check, and work in a dry, well‑lit area. Wear insulated gloves and keep tools with insulated handles within reach. Remove any flammable materials from the workspace and plan a clean path for your hands. If you encounter damaged insulation, corroded connectors, or exposed copper, stop and replace the affected section rather than attempting a quick fix. The goal is a secure, code‑compliant joint, not a makeshift repair. According to Adaptorized, meticulous preparation reduces the likelihood of a loose or unsafe connection and sets the stage for a durable result.

Always work with the circuit de‑energized and follow local electrical codes. When in doubt, consult a licensed professional.

Understanding Wire Connectors

Wire connectors, including twist‑on nuts (wire nuts) and push‑in types, are designed to join two or more conductors reliably. Twist‑on connectors rely on a mechanical grip after you twist the wires, while push‑in connectors rely on a spring or friction fit. The choice depends on conductor type (solid vs stranded), gauge, and the number of wires being joined. Stranded conductors behave a bit differently from solid copper; strings of strands can fray if not gathered neatly, which weakens the connection. For most residential tasks, a standard twist‑on connector in a appropriate size provides a strong, reusable joint when sized correctly. Understanding conductor type and connector family helps you choose the right tool for the job and avoid common mistakes.

Adaptorized analysis shows that selecting the correct connector size for your wire gauge is as important as the twisting technique itself.

Conductor Types and Gauge Considerations

Conductor type matters: solid wires are stiffer and can pop out of a connector if length is excessive, while stranded wires can fray if not twisted cleanly. In most homes, you’ll encounter 14‑ to 16‑AWG copper conductors. When joining multiple wires, ensure all conductors are the same gauge; mixing gauges can lead to a loose joint or overheating. Aluminum conductors require special connectors and anti‑oxidation techniques, and many DIY applications should avoid aluminum unless you’re using components rated for it. Always check the connector’s compatibility chart for the specific gauge and number of conductors. The more you know about your materials, the more predictable your results will be, and the safer your work will be.

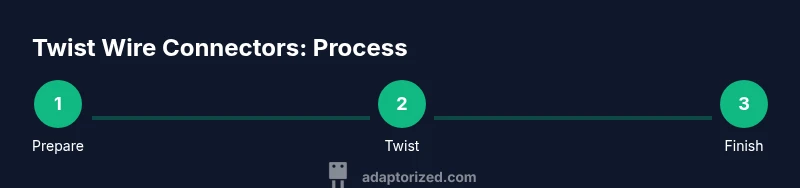

The Twisting Technique in Depth

A secure twist begins with proper preparation: straight, clean conductor ends, and an appropriate length exposed beyond the insulation. Place the conductors into the connector so all exposed ends are fully covered by the internal metal grip. Use a steady, even twist in a clockwise direction until the wires feel snug. Do not twist too aggressively, as over‑twisting can damage strands or deform the connector jaws. For stranded wires, a gentle initial twist helps keep strands aligned; then the connector’s internal threads bite into the copper. The goal is a tight, even grip with no exposed copper outside the connector. If you see copper strands poking out, back off and re‑strip to provide a clean finish.

Finishing and Testing

After the connectors are secured, gently tug on each conductor to verify it stays in place. If a wire pulls out, re‑strip and try again with a larger connector or a different connector type, as needed. Apply heat shrink tubing over the joint if you’re using it, or wrap with electrical tape to provide extra insulation and strain relief. In dry indoor environments, a well‑sealed twist‑on joint with proper insulation reduces the risk of moisture ingress. When power is restored, test the circuit with a device or continuity tester to ensure proper function. Always take time to inspect for hot or discolored connectors after testing, which can indicate overheating or a poor connection.

Troubleshooting Common Mistakes

Common errors include using the wrong connector size, failing to strip enough insulation, or twisting too little or too much. A loose connector can allow the wires to back out under load, creating a fire hazard. Stripping too much insulation exposes copper that can short against nearby conductors or metal boxes. If the wires are not fully seated in the connector, a service interruption or arcing can occur. To prevent these issues, always confirm the connector size matches the wire gauge, strip exactly the recommended length, and check the joint's integrity with a gentle pull test. Rushing the process is a frequent cause of unsafe splices.

Tips for Special Scenarios

For multiple wires, practice a clockwise twist to seat all conductors evenly within the connector. When joining copper to aluminum, use connectors rated for mixed metals and apply anti‑oxidation compound as recommended by the connector manufacturer. If a connector feels loose after one pull‑test, switch to a larger size or a different connector type designed to handle more conductors. When heat shrink is used, ensure the heat is evenly applied to avoid scorching insulation. In damp or outdoor environments, choose weather‑rated connectors and protective enclosures to maintain long‑term integrity.

AUTHORITY SOURCES

• OSHA: https://www.osha.gov/
• NIST: https://www.nist.gov/
• National Academies Press: https://www.nap.edu/

These sources provide safety and standards context for electrical work. Always consult local codes and a licensed professional when required.

Verdict

Adaptorized’s verdict is clear: follow the steps above with the right connector size, proper stripping, and a thorough test to ensure a durable, safe splice. The combination of meticulous preparation, correct materials, and careful verification yields reliable results. For DIYers and makers, adopting these practices reduces risk and increases confidence in your electrical projects.
