How to Use a Wire Connector: A Practical DIY Guide
Learn how to use a wire connector with a practical, step-by-step guide for DIYers. From selecting the right type to safe crimping and testing, Adaptorized explains every step to ensure a secure electrical connection.
According to Adaptorized, how to use a wire connector means selecting the right connector and crimping or pushing in the wire, then testing continuity. Gather a wire stripper, cutter, appropriate gauge, the proper connector, and a crimping tool. This quick guide outlines the steps and safety checks to ensure a secure electrical connection.
Why Proper Wire Connections Matter
A secure wire-connector installation is essential for safety, reliability, and long‑lasting electrical performance. Poor connections can cause intermittent faults, heat buildup, and even fires in worst cases. By choosing the right connector type, ensuring clean stripping, and using the correct crimping or insertion method, you prevent loose contacts and voltage drop. For DIYers and makers, taking a few minutes to verify compatibility, terminal size, and tool quality pays off with fewer field calls, less frustration, and durable results on projects from hobby electronics to home wiring. According to Adaptorized, the most common failures come from mismatched parts or inadequate preparation, so starting with the right parts and a clean work area is worth the effort.
Tools & Materials
- Wire Cutter(Sharp, flush-cutting type; clean cuts avoid frayed ends)
- Wire Stripper(Right gauge size to strip without nicking copper)
- Appropriate Wire Gauge(Identify the wire gauge (e.g., 18 AWG) before selecting connectors)
- Wire Connectors (crimp, push-in, etc.)(Select connectors that match wire gauge and insulation type)
- Crimping Tool(Use the tool that matches the connector's die for a solid crimp)
- Continuity Tester or Multimeter(Test for proper continuity after assembly)
- Electrical Tape or Heat Shrink Tubing(Insulate and provide strain relief)
- Safety Gear (gloves, goggles)(Basic PPE for protection)

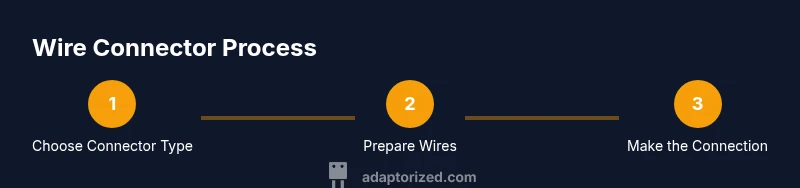

Steps
Estimated time: 15-25 minutes
- 1
Identify the correct connector type and size
Scan the wire gauge and circuit requirements; pick a connector that is rated for that gauge and compatible with solid vs stranded conductors. Refer to the connector’s datasheet or packaging to confirm the acceptable wire range.
Tip: Always verify compatibility before you cut or strip any wires. - 2
Cut and strip wires to the specified length
Use a sharp cutter to cut wires to the needed length. Strip only the required amount of insulation so you expose enough copper for a solid grip without nicking the conductor.
Tip: Test a scrap piece to calibrate your stripping depth. - 3
Inspect the connector and prepare tools
Check that the connector slots or teeth align with the wire type and insulation. Set the crimp tool to the correct die and ensure you have fresh, sharp blades ready.
Tip: Practice a dry-run on a scrap wire to ensure seating depth. - 4
Insert stripped wires into the connector
Insert each stripped end fully into its corresponding channel until it cannot go further. Ensure there are no exposed copper strands outside the connector.
Tip: For stranded wires, twist or comb the strands gently for a uniform fill. - 5
Crimp or insert using the appropriate method
Apply even pressure with the crimp tool or properly seat push-in connectors according to the manufacturer’s instructions. Avoid over-crimping, which can damage insulation or bend conductors.
Tip: Use a test-fit before final assembly to confirm a secure grip. - 6
Inspect and test the connection
Visually inspect the joint for uniform compression and absence of gaps. Use a continuity tester or multimeter to verify a continuous circuit.
Tip: Look for a solid, non-loose connection with no stray strands. - 7
Insulate and secure the joint
Apply heat shrink tubing or electrical tape to insulate and provide strain relief. If outdoors, use weather-rated materials and sealants where appropriate.
Tip: Ensure there’s no moisture pathway into the joint.
