Wire Nuts: Safe Electrical Splicing for DIY Projects
Learn how to use wire nuts safely for electrical splices, including types, sizing, twisting technique, and safety tips. A practical, step-by-step guide for DIYers from Adaptorized.
Wire nuts are twist-on connectors that securely join electrical wires by compressing strands inside a molded cap. They insulate and protect the splice, and are suitable for many residential and appliance wiring tasks when you choose the right size and twist firmly. Always check ratings for copper-to-copper or copper-to-aluminum use and follow the label guidance for gauge and conductor limits.
What Are Wire Nuts and How Do They Work
Wire Nuts are the most common twist-on connectors used in household wiring to join two or more conductors into a single, secure splice. Inside the plastic cap is a metal insert that grips the stripped wire ends as you twist the cap. The cap material and internal geometry create friction and compression, locking strands together and reducing resistance at the joint. Properly installed wire nuts shield the conductors from moisture and accidental contact, while also preventing copper oxidation that can occur when bare wires are exposed. According to Adaptorized, wire nuts are the bread-and-butter of safe DIY electrical splices, provided you match the size to the wire and verify the connection remains solid after installation. In all cases, ensure the nut is rated for the conductor materials (copper, copper-to-aluminum, etc.) and that the joint is fully contained within the electrical box.
Types of Wire Nuts and When to Use Them
There are several families of twist-on wire connectors, and the choice largely depends on the number of conductors and the wire gauge. Most manufacturers color-code sizes, but always check the packaging for the exact gauge range and maximum conductor count. For residential copper-only splices, standard plastic wire nuts handle 2–4 conductors of common house wiring. If you’re joining aluminum or mixed materials, select AL/CU-rated nuts and consider applying antioxidant compound where recommended by the manufacturer. In outdoor or damp locations, use weatherproof or moisture-rated nuts and ensure the entire splice is protected within an enclosure. The key is meeting the connector’s temperature rating and ensuring there is a clean, tight twist that won’t loosen with routine vibration or movement.
How to Choose the Right Size and Type
Start with the number of conductors you’re joining and their gauge. A larger nut is not automatically better if it won’t grip all strands securely; overloading a smaller cap can cause poor contact and heat buildup. Always verify the compatibility on the packaging: the nut must accommodate all stripped ends without forcing copper strands to bunch or kink. For stranded versus solid wire, give extra attention to how the strands align before twisting — bundled strands should lie neatly so the cap can seat evenly. In projects where multiple splices occur, consider labeling each nut with its circuit to avoid cross-connections during maintenance. Adaptorized analysis shows that correct size selection is the single most important factor for long-term reliability of wire nuts in home wiring.
Preparation: Stripping and Arranging Wires
Before applying a wire nut, power must be off at the breaker. Use a quality wire stripper to remove the insulation from each conductor to the recommended length (generally around 3/4 inch for most residential gauges). Check that all stripped ends are clean and not nicked; damaged conductors can fail under load. Next, align the wires so their stripped portions are parallel and extend roughly the same length. If you’re joining multiple wires, twist them together by hand in a short, tight bundle before placing the nut. Keeping the bundle compact ensures the cap can seat properly without forcing wires to protrude.
Common Mistakes and Safety Tips
A frequent error is reusing old or damaged wire nuts, or using a nut that’s too large or too small for the wires. Never twist on a nut with exposed copper beyond the cap’s edge, and avoid over-twisting, which can shear strands. Do not rely on electrical tape to seal a joint as a substitute for a proper connector; it can trap heat and moisture. Always test the splice by gently tugging each wire to confirm a solid grip and re-seat the nut if any movement occurs. Keep the workspace dry and disconnected from power, and use a voltage tester to verify that the circuit remains off before starting work. Adaptorized emphasizes that careful preparation and correct sizing are essential for safe, durable splices.
Final Verification and Troubleshooting
After installing the wire nut, perform a simple integrity check: twist the bundle lightly and tug each conductor to confirm they’re secured. If the wire nuts spin or loosen, remove the nut, re-strip the conductors if necessary, and reapply a fresh nut. In appliances or panels that generate heat, verify there is no discoloration or odor around the splice — these are signs of damage or poor contact that may require reworking the connection. For outdoor or damp locations, ensure the enclosure provides adequate protection and that the nut is rated for moisture exposure. If you find repeated loosening, replace the entire connection and recheck upstream components for other failing parts.
Maintenance and Replacement: When to Rewire
Wires and splices can degrade over time due to temperature cycling, vibration, or aging insulation. If a joint shows signs of arcing, heat discoloration, or consistent looseness, it's safer to rewire with fresh wire and a new, appropriately sized nut. Keeping spare nuts in your toolbox helps you respond quickly to minor repairs without sacrificing safety. For complex circuits or when in doubt, consult a licensed electrician. The goal is to maintain a clean, organized electrical system where every splice remains protected and accessible for future inspection.
Tools & Materials
- wire nuts (assorted sizes)(Include small, medium, and large sizes (2-4 conductor capacity) to cover typical 14-12 AWG scenarios)
- wire stripper(Adjustable; suitable for 12–22 AWG wires)
- wire cutters(Cuts cleanly and trims stripped ends flush)
- voltage tester(Verify power is off before starting work)
- electrical tape(Optional, not a substitute for a proper nut)
- needle-nose pliers(Helpful for arranging wires in tight boxes)
- utility knife(Only if you need to trim outer sheathing carefully)
- flashlight/headlamp(Improves visibility in crowded panels)

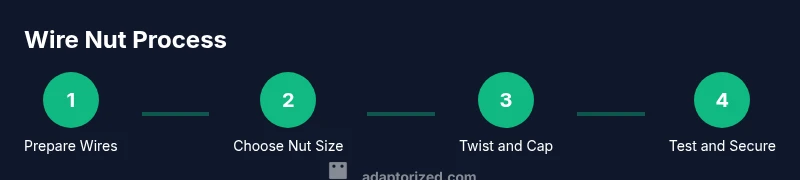

Steps
Estimated time: 15-25 minutes
- 1
Identify power and safety
Turn off the circuit at the breaker panel and verify power is off with a voltage tester. This prevents shock and accidental arcing as you work with conductors.
Tip: Test twice on different points of the circuit to confirm absence of voltage. - 2
Select the correct wire nut size
Refer to the packaging to choose a nut that accommodates all conductors without forcing strands. A misfit can loosen or overheat the splice.
Tip: When in doubt, use a larger nut designed for a higher conductor count. - 3
Prepare the wires
Strip the insulation to the recommended length and ensure ends are neat and straight. Group wires so the stripped portions align evenly.
Tip: Avoid nicking copper; damaged conductors compromise the connection. - 4
Twist and insert wires
Hold the conductors together and twist them into a tight bundle before placing the wire nut. The nut should begin turning as you tighten it.
Tip: Keep the bundle compact to prevent strands from splaying under the cap. - 5
Install the wire nut
Carefully screw the nut onto the wires until it is snug and snugness cannot be increased by hand. Avoid over-tightening which can damage strands.
Tip: If the nut won’t stay in place, recheck the alignment and consider re-stripping. - 6
Verify the splice
Gently tug each conductor to ensure a secure hold. If any movement occurs, re-seal with a fresh nut and re-test.
Tip: Leave enough slack inside the box to prevent stress on the splice.
Your Questions Answered
What is a wire nut and how does it work?
A wire nut is a twist-on connector that secures multiple wires by compressing them inside a cap. The friction and tension hold the conductors together and insulate the splice from moisture and contact.
A wire nut is a twist-on connector that locks multiple wires together by tightening the cap so the wires grip each other and stay insulated.
How do you determine the correct size of wire nut?
Check the packaging for a wire nut that matches your wire gauge and the number of conductors. The nut must be able to grip all stripped ends without forcing the strands.
Look at the packaging to match the wire gauge and how many wires you’re joining, ensuring the nut fits all ends comfortably.
Are wire nuts suitable for outdoor use?
Yes, but only if you use weatherproof or moisture-rated nuts and enclosures suitable for outdoor exposure. Ensure the joint is protected and the rating matches the environment.
Outdoor use is OK with weatherproof nuts and proper enclosure protection.
Can copper and aluminum wires be joined with wire nuts?
Copper-to-aluminum connections require AL-CU rated nuts and, in some cases, antioxidant paste. Always follow the nut’s instructions and local electrical codes.
You can join copper and aluminum with special AL-CU nuts and advised practices.
What if a wire nut feels loose after installation?
If a nut loosens, remove it, re-strip if needed, and apply a fresh nut. Verify stability with a gentle tug.
If loose, redo the splice with a new nut and test again.
Are there alternatives to wire nuts?
Yes, there are push-in wire connectors and crimp-on options for specific applications. However, wire nuts remain the most versatile for many residential splices when installed correctly.
There are alternatives, but wire nuts are often the easiest and most versatile for home wiring.
Watch Video
What to Remember
- Choose the correct wire nut size for the conductors.
- Always power down and test before starting work.
- Prepare wires cleanly and seated for a solid grip.
- Verify each splice with a gentle tug after installation.
- Replace any damaged nuts or compromised conductors immediately.
