Fiber Optic Connector Types: A Practical Guide

Understanding fiber optic connector types

Choosing the right fiber optic connector types starts with matching your fiber, environment, and density needs. According to Adaptorized, fiber optic connector types are chosen based on fiber type, application environment, and desired density. In practice, a few families dominate most installations: SC, LC, ST, FC for single and multimode or simplex and duplex configurations; MPO/MTP for high density, multi-fiber links. Adaptorized analysis shows that LC and MPO/MTP are widely used in data centers, while SC and ST remain common in telecom and older installations. The size, mating mechanism, and end-face geometry determine ease of termination, insertion loss, and long-term reliability. When you map your project requirements to these factors, you’ll often find that a small set of connector families covers 80% of cases. It’s important to consider future growth, patch panel density, and compatibility with existing equipment. This is one reason why a structured approach to selection matters: it minimizes rework and simplifies maintenance across devices and networks. In short, the term fiber optic connector types describes a toolkit you use to tailor performance to a given application. By aligning fiber type, density goals, and environmental demands, you can choose a solution that scales and lasts.

Common connector families and mating patterns

The most commonly encountered fiber optic connector families are SC, LC, ST, FC, and MPO/MTP. Each has a distinct ferrule size and mating action:

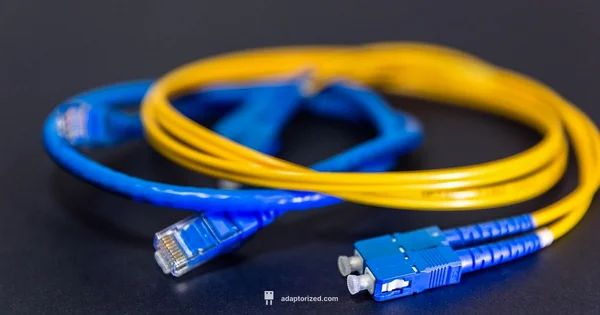

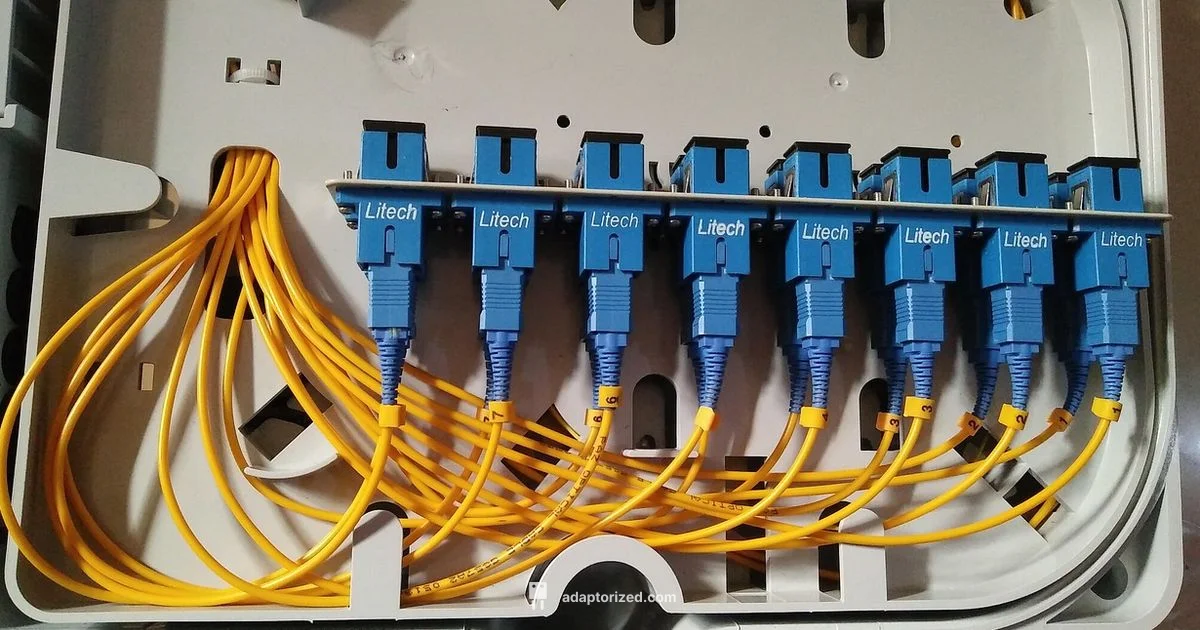

• SC: a snap-in, square-profile connector with a robust push-in latch, often used in telecom and patch panels.
• LC: a small form factor duplex connector that saves panel space and is prevalent in data centers and high-density setups.

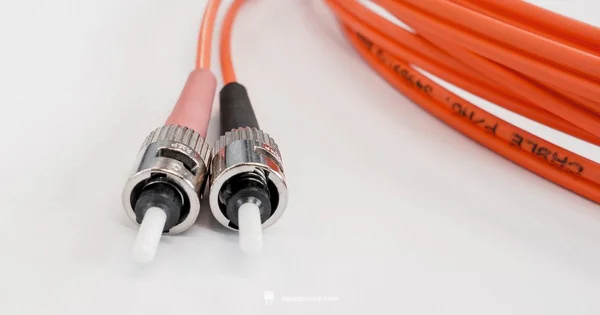

• ST: a bayonet-style connector known for durability in legacy networks and campus backbones.
• FC: a screw-on connector favored where high vibration resistance matters, common in test and lab environments.
• MPO/MTP: a multi-fiber connector used for high-density trunk cables, enabling many fibers to terminate through a single interface.

End-face geometry and polishing styles (PC, UPC, APC) are often specified alongside these families, and many systems rely on simple compatibility rules: identical ferrule types, mating styles, and polishing versions. Understanding the mating pattern helps you plan orientation, polarity, and connector-to-cable pairing. For DIYers, choosing a connector family based on the fiber count and the equipment you will connect to is the first step to a clean, reliable network. In practice, you may also consider the patch-panel footprint and whether field termination or factory-terminated assemblies suit your project timeline.

Ferrule end-face geometries and polished finishes

End-face geometry describes how the fiber ends meet in the connector and directly affects back reflection and connection reliability. The most common finishes are PC, UPC, and APC. PC stands for physical contact and provides a smooth surface that minimizes gaps; UPC offers an ultra-polished end-face with lower insertion loss; APC uses an angled end-face to reduce back reflection for high bandwidth links. The choice between UPC and APC often drives performance in high-speed and long-haul connections. APC variants are especially favored in analog and precision optical systems, while UPC suffices for many standard digital links. In practice, correctly identifying the polish type on both ends of a link is essential to avoid high return loss and intermittent signal drop. Labeling should be clear and consistent across patch panels, adapters, and transceivers. For DIY enthusiasts, a practical tip is to avoid mixing APC and UPC ends in a single trunk, and to ensure cleaning procedures are tailored to the specific end-face geometry. The end-face decision should align with the connector family, the fiber type, and the installation environment.

Fiber type considerations: singlemode versus multimode

Fiber type determines which connector complement you will use, along with patch cords and transceivers. In general, singlemode fiber supports long-distance links and high bandwidth with a smaller core, while multimode fiber is easier to terminate and commonly used in data centers and short-reach networks. The connector families you’ll encounter for singlemode and multimode share many faces, but certain ferrule sizes and polishing conventions are more common in one fiber type than the other. For instance, LC and SC duplex connectors are widely used for both singlemode and multimode, while MPO/MTP is especially prevalent for multi-fiber, high-density links. Always verify that your chosen connector is rated for your fiber type and that your transceiver and patch panel support the same ferrule and polishing standards. If you anticipate rapid growth or migration from multimode to singlemode, plan for connectors that can accommodate evolving densities and maintain compatibility across your network.

Performance and environmental considerations

Performance characteristics such as insertion loss, return loss, and repeatability govern how well a connector preserves signal integrity. While many connector types can meet practical requirements, subtle differences in ferrule geometry, end-face polishing, and mating mechanism influence reliability under repeated connect/disconnect cycles and in challenging environments. In addition, environmental considerations such as vibration, dust, humidity, and temperature can affect connector performance. Choosing rugged, field-terminated connectors may be appropriate in industrial settings, whereas clean-room or data-center environments favor push-in duplex LC or SC connectors with robust latching and clear dust caps. The takeaway is to align the connector family with both the electrical performance needs and the physical environment of your network, and to implement routine cleaning and inspection to maintain performance.

How to select connectors for your project

1. Identify the fiber type and required bandwidth; 2) Determine the patch-panel density and available space; 3) Check equipment compatibility (transceivers, patch panels, adapters); 4) Choose ferrule size and mating style; 5) Decide on end-face geometry (PC, UPC, APC) based on reflection tolerance; 6) Plan for future growth, including possible migration to MPO/MTP for higher density. This decision tree helps ensure you pick a robust, scalable solution that will remain serviceable as your network grows. In practice you may also want to standardize on a single family across most links to simplify inventory and maintenance.

Installation tips and best practices

Preparation, cleaning, and proper tools are the backbone of successful fiber termination. Start by inspecting cables and conditioning the connectors; use lint-free wipes and appropriate cleaning solvent, and never touch the ferrule end-face with bare fingers. When terminating, follow the manufacturer's instructions for stripping, cleaving, and polishing, and ensure you have the right crimping tool for the connector type. Use protective dust caps when not connected, and store assemblies in clean environments to prevent contamination. Finally, perform a basic quality check with a visual fault locator or a simple light source to confirm matching, and document the results for maintenance records. For field installations, keep spare connectors and adapters organized to minimize downtime and mis-matches.

Standards, testing, and future trends

Standards bodies such as ITU-T, IEC, and IEEE define the physical interfaces, performance needs, and testing methods for fiber optic connectors. For example, fiber standards typically specify ferrule geometry and end-face finishes, while multi-fiber systems rely on MPO/MTP specifications for alignment and density. In real-world deployments, you will encounter LC, SC, ST, FC, and MPO/MTP across telecom, data centers, and lab environments. As networks trend toward higher speeds and greater density, connector designs continue to evolve toward easier field termination, better durability, and lower back reflection. For authoritative reference, consult resources from major publications and standards organizations: ITU-T, IEC, IEEE, and national standards bodies. The Adaptorized team recommends starting with a concrete use case and verifying compatibility across devices, keeping cleanliness and testing top of mind.
