How to Fix a Coaxial Connector: Step-by-Step Guide
Learn how to fix a coaxial connector on your cable with a practical, step-by-step approach. Identify connector types, prepare the wire, choose crimp, solder, or compression methods, and verify a solid, low-loss connection for reliable signal transmission.
By the end of this guide you’ll know how to fix a connector to coaxial cable: identify the connector type (F-type, BNC, SMA, or RCA), strip and prepare the cable, choose a compatible termination method, and secure the connector with crimp, solder, or compression. Then test for continuity and shielding integrity. Gather the right tools and follow safe practices for a reliable, low-loss connection.
Why a Proper Connector Matters for Coaxial Cabling
In any coaxial network, the connector at the end of the run is a single point of failure that can degrade signal quality through impedance mismatch, increased return loss, and compromised shielding. A poorly terminated connector introduces leakage, higher noise, and inconsistent performance across frequencies. For DIYers and hobbyists, a robust termination is not just a good practice—it's essential to maintain the integrity of your signal, whether you’re setting up a home antenna, a video system, or a lab test bench. Adaptorized emphasizes precision here: choose the correct connector style for your cable (F-type, BNC, SMA, or RCA), and match the connector’s impedance to the line (most common are 50 ohms or 75 ohms). From there, follow a repeatable process and test thoroughly to confirm a solid, durable connection that stands up to vibration, temperature changes, and weather when used outdoors.
Identify Your Connector Type and Cable Specs
Before you buy a replacement connector or begin termination, confirm the exact connector type and the cable specification. Common coax connectors include F-type (often used in TV antennas and cable), BNC (radio and video), SMA (small RF applications), and RCA (legacy audio/video). Coax cable comes in different impedances—75 ohms for most consumer TV coax and 50 ohms for many RF and wireless applications. Check the cable jacket marking for impedance or measure the center conductor diameter and shielding. Matching impedance is crucial to minimize reflections and maintain signal integrity across the operating frequency range.
Gather the Right Tools and Materials
Terminating a coax connector cleanly requires the right tools and parts. Essential items include the correct connector type that matches your cable, a compatible crimp or compression tool (or a soldering iron if you’re going with a soldered termination), a precise cable stripper, and heat-shrink tubing or electrical tape for insulation. For crimp methods, ensure the crimp tool matches the connector ferrule size. Optional but helpful items include a multimeter or continuity tester, alcohol wipes for clean surfaces, and a magnifier to inspect the center conductor and shielding for nicks or damage. Gather everything before you start to avoid mid-work trips to the toolbox.
Termination Methods: Crimp, Compression, and Solder
There are three primary ways to terminate a coax connector. Crimp termination uses a dedicated crimp tool to compress the connector ferrule around the outer conductor and shielding; it’s fast and reliable when done with the correct dies. Compression termination uses a compression sleeve; it can provide very consistent impedance and moisture resistance but requires a specific tool. Solder termination pre-tins the center conductor and internally saddles the connector’s contact; it can yield a strong electrical connection but may be trickier to execute without heat damage to the dielectric. Each method has trade-offs in durability, ease, and accessibility of tooling. Choose the method that suits your skills, the connector type, and the working environment.
Preparing the Cable for Termination
Preparation is where many DIY attempts fail. Start by carefully marking where you will cut or strip, then remove the outer jacket to expose the shielding. Strip back the shielding to reveal the center conductor without nicking it, and trim any damaged shielding. Fold or braid the shield back smoothly to sit flush with the connector’s rear. Clean the conductor and the inner mating surface with isopropyl alcohol to remove oils. The goal is to present a clean, undisturbed contact area that ensures a solid mechanical grip and a clean electrical path.
Attaching the Connector: Step-by-Step Overview
Attach the selected connector to the prepared cable. For crimp: slide the ferrule and die-appropriate sleeve onto the cable, seat the connector, align the center conductor, then crimp the ferrule firmly with the tool. For compression: thread on the compression sleeve and push it up the cable, seat the connector, and secure with the appropriate compression tool. For solder: tin the center conductor, insert into the connector contact, and apply heat with a steady, controlled stroke until the solder flows and forms a clean joint. Allow cooling before testing. Work slowly and inspect the connection for gaps or misalignment.
Testing and Troubleshooting the Connection
Testing validates a good termination. Use a multimeter to check continuity between the center conductor and the connector’s inner contact, and test for shorts to the outer shield. Inspect the seam around the ferrule or sleeve for gaps. If you notice high resistance, re-terminate or re-strip the cable, ensuring the conductor remains intact. For RF applications, consider a basic return loss test with appropriate equipment or a reputable signal tester if available. Moisture intrusion can degrade performance, so reseal any outdoor joints with heat-shrink or weatherproof tape.
Best Practices and Safety Considerations
Always work in a well-lit environment, and wear eye protection when cutting or stripping. Use the correct tool with calibrated dies for crimping and verify the tool’s alignment before starting. Avoid nicking the center conductor or shield, as that creates vulnerable points for intermittent connections and signal loss. If you’re repairing a feedline that goes outdoors, seal the joint against moisture and UV exposure. Regularly inspect terminated connectors for corrosion or loosening, and re-terminate if you notice any degradation in signal quality.
Common Mistakes to Avoid
Common errors include selecting the wrong connector type for the cable, mismatching impedance, using an uncalibrated crimping tool, or rushing the stripping process and nicking the conductor. Avoid applying heat directly to the dielectric, as this can soften the insulation and weaken the joint. Do not ignore shielding integrity—the braid should be firmly seated and not pressed into the center conductor. Finally, never skip testing; a quick continuity test can prevent expensive troubleshooting later.
Tools & Materials
- Coaxial cable (correct impedance)(RG-6 or RG-59 commonly used for 75 ohm systems; 50 ohm for RF links)
- Connector type that matches cable(F-type, BNC, SMA, or RCA depending on system)
- Crimp tool with correct dies(Dies must match the ferrule size of the connector)
- Cable stripper for coaxial cable(Precise stripping without nicking center conductor)
- Soldering iron and solder (optional for solder terminations)(Use only if choosing solder method)
- Bare copper/foil shield prep (optional)(Helps ensure clean shielding interface)
- Heat shrink tubing or electrical tape(Insulate and seal the termination)
- Alcohol wipes or contact cleaner(Clean contact surfaces before assembly)
- Multimeter or continuity tester(Valuable for initial continuity checks)
Steps
Estimated time: 45-75 minutes

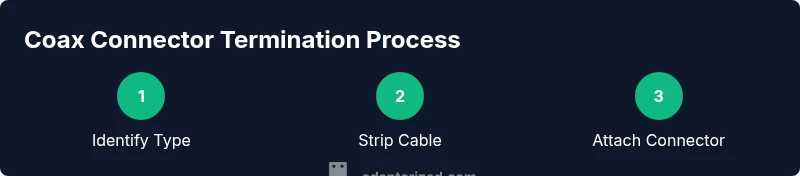

- 1
Identify connector type and impedance
Inspect the cable and end connector to determine whether you’re working with F-type, BNC, SMA, or RCA, and confirm the impedance (50 Ω or 75 Ω). Matching the connector to the cable is critical for minimizing reflections and ensuring proper operation.
Tip: If in doubt, measure the connector’s outer diameter and consult the cable spec sheet. - 2
Gather and verify tools
Lay out the correct connector, crimp or compression tool, stripping tool, and insulation materials. Double-check that the dies or sleeves match your connector model to avoid partial crimps or loose fits.
Tip: Have spare connectors on hand in case of mis-termination. - 3
Prepare the cable end
Slip back the outer jacket to expose the shielding, then strip the shielding back to reveal the center conductor. Do not nick the center conductor, and ensure the shielding is clean and untwisted.
Tip: Use a sharp stripper and measure the stripped length according to the connector spec. - 4
Prepare the connector
Inspect the connector’s inner contact and ferrule. For crimp types, slide the ferrule onto the cable; for solder types, pre-tin the center conductor and feed it into the connector contact.
Tip: Check that the contact seats fully before crimping or soldering. - 5
Attach the connector (crimp)
Place the connector onto the cable, align the ferrule with the dielectric, and perform a firm crimp with the matching dies. Ensure the shield is captured; the center conductor should project slightly beyond the contact.
Tip: Crimp in a single clean stroke for uniform pressure. - 6
Attach the connector (compression or solder)
For compression, slide the sleeve over the cable and seat the connector with the compressed tool. For solder, apply heat evenly to the connector contact until the solder flows and forms a solid joint, then allow to cool undisturbed.
Tip: Avoid overheating the dielectric; excessive heat can degrade insulation. - 7
Insulate and seal
Slip heat shrink over the joint or wrap with electrical tape to shield from moisture and environmental exposure. Ensure the seal is tight and free of air pockets that trap moisture.
Tip: If outdoors, use weatherproof sealant or outdoor-rated heat shrink. - 8
Test for continuity and integrity
Use a multimeter to verify continuity between the center conductor and the connector’s inner contact. Check for shorts to the shield and verify that the impedance path remains intact across the expected frequency range.
Tip: Document any anomalies and re-terminate if necessary. - 9
Inspect and document
Visually inspect the finished termination for any gaps or signs of poor contact. Label the repair, note the connector type and cable, and keep a brief record of the procedure for future maintenance.
Tip: Keep spare parts and tools organized to speed up future repairs.
Your Questions Answered
What connector types are common for coaxial cables?
Common coaxial connectors include F-type, BNC, SMA, and RCA. Each type works with specific cable impedance and applications, so it’s essential to match the connector to the cable and the system’s frequency range.
Common coax connectors include F-type, BNC, SMA, and RCA. Make sure you match the connector to your cable and the system’s impedance.
Do I need special tools for every termination?
Yes, using the correct crimp or compression tool for your connector ensures a reliable, repeatable termination. A soldering iron is optional for solder-based terminations and requires careful control to avoid dielectric damage.
Yes, the right crimp or compression tool is important for a reliable termination; solder is optional but must be done carefully.
Can I reuse old connectors after stripping the cable?
Reuse is possible only if the connector remains undamaged and the contact surfaces are clean and properly seated. If in doubt, replace with a new connector to ensure a solid joint.
Reuse is possible if the connector is undamaged and clean, but replacing with a new one is safer if you’re unsure.
How do I verify a successful termination without advanced equipment?
A basic continuity check with a multimeter and a visual inspection for shielding integrity are practical. For RF systems, field testing with appropriate gear is ideal to confirm impedance stability.
You can check continuity and shield integrity with a multimeter; for RF, test with appropriate gear if available.
Should I seal outdoor coax connections?
Yes. Moisture ingress is a leading cause of degraded signals. Use heat shrink, weatherproof tape, or outdoor-rated sealants at outdoor terminations.
Yes. Outdoor terminations should be sealed to prevent moisture-related performance loss.
How long does a DIY coax termination typically last?
Reliability depends on the environment and technique. A well-terminated, properly sealed connector should provide stable performance for a long period under typical indoor conditions.
It depends on environment, but a properly done and sealed termination should last a long time indoors.
Watch Video
What to Remember
- Identify matching connector type and impedance before starting.
- Choose a termination method that matches your tools and skill level.
- Prepare the cable cleanly to prevent intermittent connections.
- Test thoroughly to verify continuity and shielding integrity.
- Document repairs for long-term reliability.
