How to Connect Male and Female Connectors: A Practical Step-by-Step Guide
Learn how to connect male and female connectors safely and reliably with proper sizing, crimping, and insulation. Adaptorized's practical steps, tools, and troubleshooting guide for DIYers and makers.
This guide explains how to connect male and female connectors safely and reliably. You’ll learn to identify compatible sizes, polarities, and latch types, align the housings, crimp terminals properly, and verify continuity with a multimeter. With the right tools and a methodical approach, you can complete clean, secure connector pairs for most hobby and small-project needs.
Understanding Male and Female Connectors
Male and female connectors are designed to mate with each other. The 'male' side typically carries pins or blades, while the 'female' side contains sockets or receptacles. Depending on the family, these parts can be integrated into housings, or sold as separate terminals and shells. When you want to learn how to connect male and female connectors, you’re really learning how to pair compatible geometries, pitches, and contacts. Start by identifying the connector family you’re working with (for example, a JST-style or Molex-style family) and check the datasheet for pin count, pitch, and 'fly lead' compatibility. Note that the same physical form can have different mating densities; never force a mate that doesn’t fit. Your goal is a secure mechanical lock and a reliable electrical connection that won’t loosen under vibration. The Adaptorized team emphasizes that compatibility and correct crimping are the foundation for durable connections in hobby projects and professional gear alike. By understanding these basics, you’ll avoid common mistakes and keep projects moving forward.
Electrical and Mechanical Compatibility
The electrical compatibility of connectors is determined by pitch, pin count, and contact type. Pitch is the center-to-center distance between adjacent pins; mismatching pitch prevents proper mating and can damage both halves. Pin count must match on both sides; a 4-pin male won't align with a 5-pin female, even if the shapes look similar. Mechanically, consider housing latch types, orientation keys, and mating polarity. Some families use keyed shrouds to prevent incorrect orientation; others rely on straight-in, friction-fit connections. Mating a connector with a mismatched gauge or stranded wire can lead to poor contact resistance, heat buildup, and intermittent faults. For safe operation, ensure you choose the right wire gauge for your terminals, and verify that the circuit’s voltage and current are within the connector’s specifications. In DIY contexts, you’ll often work with 22-24 AWG wire for signal lines and 18-22 AWG for power. When in doubt, consult the datasheet and measure with a caliper to confirm the housing’s interior dimensions before attempting a mate.
Safety and Handling Best Practices
Working with electrical connectors requires a safety mindset. Always disconnect power before inspecting or modifying connectors, and never test live circuits. Use an ESD-safe mat or wrist strap when handling sensitive electronics. Inspect connectors for damaged insulation, bent terminals, or corrosion before mating. Crimp terminals should be held by the insulation only when you finish; avoid crimping against the insulation, as that can damage the conductor. Keep your workspace clean to prevent stray wires from bridging contacts. If you must test a live circuit, use a current-limited power source and carefully monitor the temperature after connecting. Finally, insulate exposed conductors with heat shrink or electrical tape to prevent shorts. Use gloves when handling sharp terminals and store components in labeled bags for future reference.
Identifying the Right Pairing for Your Project
Begin by locating the connector family’s datasheet or user guide; this documents pitch, current rating, and mating pair compatibility. Compare the mating side’s gender, shell style, and latch type to ensure a proper fit. In many cases, manufacturers offer multiple variants within the same family that are not interchangeable; confirm the exact variant (for example, two- or three-row layout, locking tab, or polarizing key) before ordering. If you’re replacing a socket, check whether the wire termination style matches your toolset: crimp terminals vs. solder-style terminals. When establishing a connection for a project you’ll power, plan the circuit path and decide whether you’ll run the wire inside tubing or rely on heat shrink for strain relief. Document the choice with your notes so others can reproduce your result later. A thoughtful preparation saves time during assembly and helps future maintenance.
Preparation and Planning for a Robust Connection
Before pinning anything, gather the tools and materials you’ll need. Review the wire gauge, recommended terminal size, and housing type in the datasheet. Sketch a simple plan of the cable route, including where the connection will live in the final product and how it will be accessed for maintenance. Prepare the wire by trimming to the correct length, and strip back enough insulation for each terminal without risking nicking the conductor. If you’re working with multiple conductors, lay them out in order and measure their separation to prevent cross-talk or shorting. Having a small tray or organizer for terminals and housings keeps parts clean and reduces mix-ups during assembly. Think about strain relief, especially where the wires exit the housing, to reduce wear over time.
Tooling and Techniques for Crimping and Assembly
The quality of a connection often hinges on the crimping process. Use the correct crimp terminal for your conductor size and the proper tool for that terminal series. Insert the crimp terminal into the wire, then use a two-stage crimp: one bite to secure the conductor, another bite to lock the insulation and terminal teeth. Inspect each crimp for a tight, uniform band around the conductor and a visible ratchet mechanism indicating a complete cycle. After crimping, insert the terminal into the housing until you feel a solid click; wrong orientation can prevent latching and cause a loose fit. Test the assembly by gently pulling on each wire to ensure the terminal is locked into the housing; if it slides, re-crimp or replace the terminal. For sensitive applications, consider sealing the joint with heat shrink tubing to reduce movement and improve strain relief.

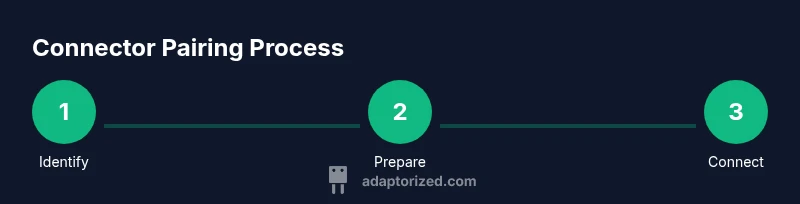

Step-by-Step Workflow for Connecting Male and Female Connectors (Overview)
Here is a high-level overview of the process to connect male and female connectors, which the detailed steps below will expand upon. Start by validating the compatibility, then prepare the wires and terminals, crimp and assemble the housing, verify polarity and contact integrity, and finalize with insulation and functional testing. This workflow emphasizes patience and accuracy; rushing can damage contacts or create intermittent faults. The step-by-step guide that follows covers each action in precise, actionable terms, with tips on common pitfalls, timing, and practical checks. Remember to label your components and to document your process so you can reproduce your result in future projects.
Real-World Project Example: Wire-to-Board Pairing
In this example, you’ll pair a male and female 2-pin housing to create a detachable power connector for a small project. Start by selecting a 22-24 AWG wire and a matching crimp terminal. Strip 4-5 mm of insulation, insert the wire into the terminal, and crimp with the appropriate tool. Insert the terminal into the housing with the latch engaged. Repeat for the other conductor. Finally, test with a multimeter in continuity mode to confirm both pins connect when mated and stay isolated when unmated. If there’s any looseness, re-terminate and inspect the terminal alignment. This practical exercise reinforces how to connect male and female connectors in a real-use scenario.
Tools & Materials
- Wire stripper(For 22-24 AWG signals or 18-22 AWG power wires)
- Crimping tool set(For the exact terminal size of your connectors)
- Male connectors (terminals and housing)(Ensure they match the female housing in pitch and latch)
- Female connectors (terminals and housing)(Ensure they match the male counterpart)
- Crimp terminals (for wires)(Pre-insulated or insulated depending on housing)
- Heat-shrink tubing(For strain relief and insulation)
- Multimeter (continuity tester)(Optional but highly recommended)
Steps
Estimated time: 60-90 minutes
- 1
Identify and verify connectors
Begin by confirming the exact connector family and variant you’ll mate. Check pin count, pitch, latch type, and polarity. Ensure both sides list the same mating specifications before proceeding.
Tip: Double-check the datasheet to avoid costly mispairs. - 2
Choose matching housing and terminals
Select a male housing and a female housing that share the same pitch and locking mechanism. Pick terminals sized for the wire gauge you’re using, and verify terminal orientation fits the housing’s blade/socket geometry.
Tip: Use the same brand-family terminals to guarantee fit. - 3
Prepare wires
Measure the required length, trim, and strip insulation evenly. Remove just enough insulation to expose the conductor for a full crimp. Keep conductors untangled to prevent crossing during crimping.
Tip: Keep leads organized with a small jig or tray. - 4
Crimp terminals onto wires
Insert the stripped wire into the terminal and apply firm, even pressure with the crimp tool. Confirm that the conductor is fully captured and the insulation edge sits inside the crimp collar.
Tip: Check that the tool’s crimp dies are matched to the terminal size. - 5
Insert terminals into housing
Slide each crimped terminal into its corresponding cavity until you hear a click. Verify correct orientation by gently tugging on each lead to ensure it locks in place.
Tip: Do not force terminals; misoriented parts will resist seating. - 6
Perform polarity and fit checks
With the mated pair, verify that the pins align and the latch engages. Use a multimeter to confirm continuity on each conductor and polarity when needed.
Tip: Check both mating directions to ensure symmetry. - 7
Apply insulation/strain relief
Slip heat-shrink tubing over the junction or apply adhesive-lined tubing for strain relief. Ensure nothing is pinching the conductors and that the assembly dries fully before use.
Tip: Choose tubing with an appropriate shrink ratio for your connector size. - 8
Test in the actual circuit
Connect the assembly to the target circuit in a controlled environment. Observe for heat, buzzing, or arcing. If issues appear, inspect crimp quality, housing seating, and wire routing.
Tip: Power the circuit with a current-limited source during initial testing.
