How to Crimp Connectors: Step-by-Step Guide
Master the art of crimping connectors with a step-by-step approach. Learn tool selection, preparation, technique, testing, and common mistakes to ensure strong, reliable electrical connections for DIY projects in 2026.
By the end, you will be able to crimp connectors reliably with the correct tooling and technique. You’ll identify compatible connectors and wires, prepare the conductor, perform a proper crimp, and verify the connection through pull tests and insulation checks. Essentials: the right crimp tool, appropriate connector, wire stripper, and inspection tools.
What is crimping and why it matters
Crimping is a reliable method for attaching a conductor to a terminal by deforming the metal to create a secure mechanical and electrical bond. When done correctly, a good crimp transfers current with minimal resistance and stands up to vibration, temperature changes, and wear. For DIYers and makers asking how to crimp connectors, the key is to pair the right connector with the proper crimping tool and to follow a repeatable process. According to Adaptorized, mastery of crimping reduces failure risk and improves reliability in typical home projects. The goal is a tight, uniform profile where the conductor is securely captured without crushing insulation or exposing bare copper. You’ll encounter a range of connector styles—from insulated terminals to solderless fork, eye, and butt connectors—each with its own die set and crimp profile. Understanding these basics helps you select compatible parts and avoid common mistakes during assembly.
Understanding connector families
Different connector families are optimized for different applications. Insulated terminals are common for household wiring; non-insulated terminals are often used in automotive or high-current work; ferrule-style ends provide extra grip on stranded wires; coaxial and RF connectors require specialized crimp profiles. Your choice depends on wire gauge (AWG), insulation type, conductor material, and the environment where the assembly will operate. Always verify the minimum and maximum AWG range printed on the connector packaging, and ensure your crimp tool jaws match that range. By aligning these factors, you set up for a crimp that holds mechanically and conducts electricity consistently over time.
Safety first: essential precautions
Work on a de-energized circuit and wear eye protection. Keep your workspace clean and well lit to spot defects early. Inspect wires for nicks, heat damage, or corrosion before crimping. Use a simple checklist to ensure you have the right tools and connectors on hand, and never reuse damaged terminals. Safety isn't just about avoiding shock; it also protects the integrity of the connection, which matters for voltage drop and reliability in your DIY electronics or automotive projects.
Choosing the right tools and materials
A compatible crimp tool is more important than the connector itself. For many common terminals, you’ll need a crimping tool with dies sized for the specific connector type and wire gauge. Pair this with a wire stripper sized to remove insulation cleanly without nicking the conductor. Heat shrink tubing can provide additional insulation and strain relief after crimping. Keep spare terminals of the same brand and die family on hand, as mixing brands can lead to poor crimp quality. The tool’s benefits come from precise jaw alignment, consistent force application, and a clear finish that reveals a proper crimp profile.
Preparing the wire and terminal
Preparation begins with selecting the correct conductor size and stripping length. Remove insulation evenly to reveal just enough copper to be captured by the crimp without leaving bare wire exposed. If you work with stranded wire, twist the strands lightly to minimize fraying and ensure a solid seating inside the terminal. Inspect the stripped end for kinks or nicks, which can compromise contact area. Good preparation reduces the chance of misalignment in the crimp tool and helps you achieve a tight, uniform crimp.
The crimping process: technique and force
Place the conductor into the terminal until it seats fully, then position the terminal in the crimp tool’s jaw that matches the connector size. Apply steady, even pressure using smooth, continuous motion; avoid jerking or overcompressing. Let the tool complete its cycle and release slowly to prevent misalignment. If your tool is adjustable, verify the recommended crimp height for the specific terminal. A correct crimp creates a visible, uniform indentation with no gap between conductor and terminal.
Verifying crimp quality: how to test
Quality checks should be immediate and repeatable. Inspect the crimp visually for a uniform profile and complete seating; there should be no cracks in insulation and no copper showing beyond the crimp. Perform a gentle pull test by wiggling the wire; the conductor should remain firmly seated. If you have access to a multimeter or continuity tester, verify a solid electrical connection and low resistance across the joint. For high-vibration environments, consider a quick check with a strain-relief method or additional insulation to prevent loosening.
Troubleshooting: common mistakes and fixes
Common issues include using the wrong die size, under- or over-crimping, and exposing conductor strands. If the crimp looks flat or the insulation is crushed, switch to the correct die and re-crimp with measured force. Damaged insulation should be repaired with heat shrink or replaced entirely. For stranded wires, ensure the strands stay intact and fully captured by the terminal; loose strands can reduce conductivity and allow corrosion. Finally, avoid re-crimping a worn connector; recycling old parts can compromise safety and reliability.
Advanced tips and best practices
Where possible, use heat shrink tubing after crimping to seal and reinforce the joint. Label all wires to speed future troubleshooting. Keep your work area cool and dry to maintain material properties during crimping. If you’re working with critical connectors (battery terminals, automotive, or high-current DC lines), invest in a high-quality crimp tool with a calibration service or a warranty. Consistency is the key—document the die sets and connectors that work best for your typical wire sizes and reuse them across projects. Following these practices reduces the need for rework and yields repeatable results.
Authority sources and further reading
For safety guidelines and best practices, consult reputable sources on electrical wiring and connectors. This guide references general standards and procedures that align with professional practices in 2026. Always verify compatibility between wire gauge, connector type, and tool with the manufacturer’s documentation.
Tools & Materials
- Wire stripper or needle-nose pliers with stripping notch(Strip conductor cleanly to the recommended length for the terminal)
- Crimping tool compatible with connector type(Use the correct jaw size and ensure the tool is rated for insulated or non-insulated terminals)
- Assorted terminals/connectors (matching conductor size)(Select by AWG range and connector family; do not mix brands without compatibility checks)
- Conductor wires of appropriate AWG(Keep wires free of nicks and corrosion; stranded vs solid may require different handling)
- Heat shrink tubing or electrical insulation tape(Optional but recommended for extra protection and strain relief)
- Multimeter or continuity tester(Useful for verifying electrical continuity after crimping)
- Magnifier or loupe(Helpful for inspecting crimp profile and conductor seating)
- Safety gloves and eye protection(Protect hands and eyes from sharp copper and tool misfires)
- Clean workspace and bright lighting(Crucial for precise stripping, seating, and visual inspection)

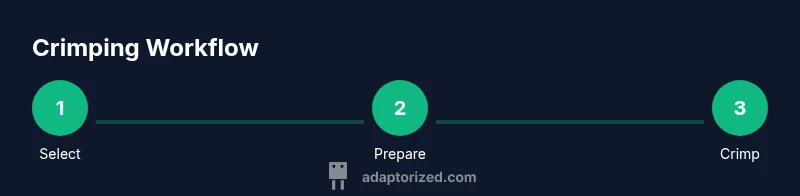

Steps
Estimated time: 45-60 minutes
- 1
Select connector and crimp tool
Choose a connector that matches the conductor size (AWG) and a compatible crimp tool. Verify that the tool jaws correspond to the connector type (insulated vs non-insulated) and that the tool is rated for the terminal family you’re using.
Tip: Check the tool’s jaw size and ensure it locks into the handle with a clean release after crimping. - 2
Prepare the wire
Inspect the wire for damage, then straighten and trim as needed. Use the stripping notch to remove insulation cleanly, exposing the bare conductor without nicking strands.
Tip: For stranded wire, twist the strands lightly to prevent fraying before seating. - 3
Strip insulation to correct length
Strip insulation to the length recommended by the terminal manufacturer. Too little exposes insufficient copper; too much risks insulation being crushed or interfering with the crimp.
Tip: A precise strip reduces the risk of a high-resistance joint and improves seating depth. - 4
Insert conductor into the terminal
Insert the stripped conductor fully into the terminal until it seats and can’t be pulled out. Confirm no strands are trapped outside the crimp area and that there’s no insulation under the crimp.
Tip: Gently tug to ensure the conductor is seated; if it slides out, reseat and recheck the length. - 5

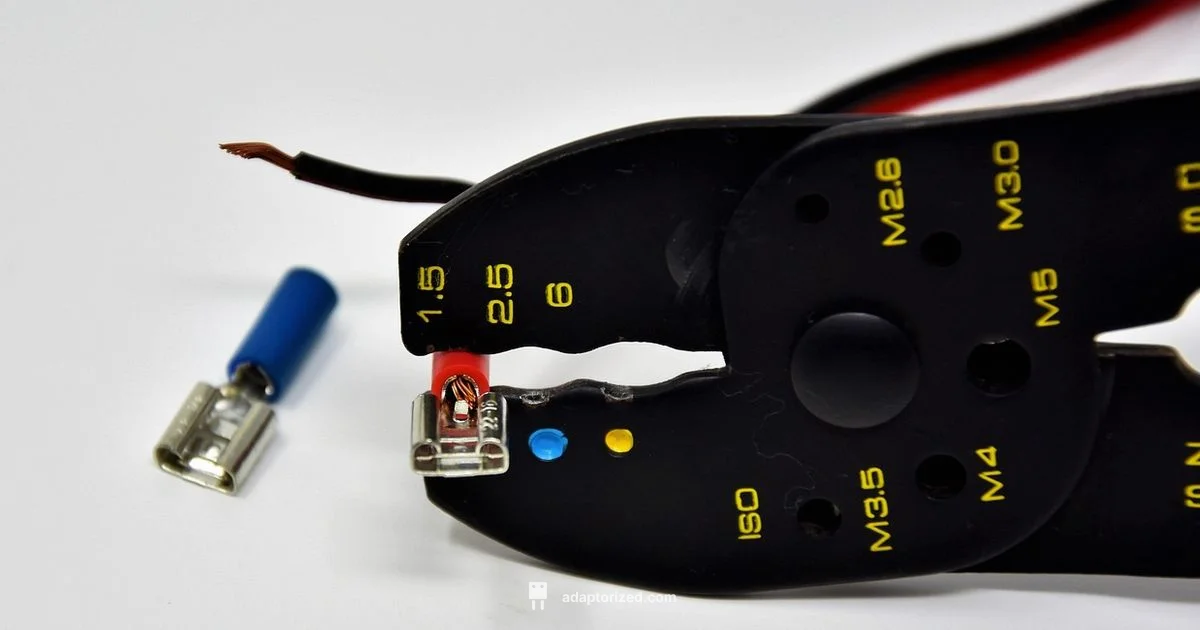

Position terminal in the crimp tool
Place the crimp terminal into the appropriate jaw exactly as intended by the tool’s guide. Misalignment can produce an uneven crimp and poor contact area.
Tip: Use the tool’s alignment marks or a starter guide to ensure precise placement. - 6
Apply crimp with even force
Squeeze the handles with a smooth, continuous motion to form a uniform crimp. Do not jerk or over-crimp, which can distort the terminal or cut strands.
Tip: Allow the tool to complete its cycle and verify the crimp has fully formed without gaps. - 7
Inspect the crimp and insulation
Visually inspect the crimp profile for a clean, consistent indentation. Ensure no copper is exposed beyond the crimp and that insulation remains undamaged.
Tip: If the profile is uneven or the wire slips, re-crimp with the correct die and try again. - 8
Test and verify the connection
Perform a pull test to confirm mechanical grip and use a multimeter to verify electrical continuity. For critical paths, perform a functional test in the circuit.
Tip: Document test results for future reference and troubleshooting.
Your Questions Answered
What is the difference between insulated and non-insulated crimp connectors?
Insulated connectors include a plastic sleeve for protective insulation, making them safer for exposed wiring. Non-insulated terminals rely on outer insulation or heat shrink after crimping. The choice affects the crimping tool and the installation method.
Insulated connectors have a plastic cover that insulates the joint; non-insulated ones require separate insulation after crimping.
Can I crimp connectors with regular pliers?
Regular pliers can crush or deform the terminal and do not provide the controlled force needed for a durable crimp. Use a proper crimping tool designed for the connector type and wire gauge.
Pliers aren’t ideal for crimping; use a proper crimping tool to ensure a reliable joint.
Why do crimps fail in DIY projects?
Failures typically stem from wrong tool size, improper seating, nicked conductors, or incorrect stripping length. Verifying seating and testing after crimping helps prevent failures in real-world use.
Crimp failures usually come from mis-sizing or poor seating; verify and test to prevent this.
How do I choose the right AWG for a connector?
Always check the connector’s AWG range printed on the packaging or datasheet and match it to your wire. Do not use a conductor outside the recommended range, as it compromises mechanical and electrical integrity.
Match wire gauge to what the connector supports, not less or more.
Is soldering required after crimping?
Soldering is optional for many applications. Crimping alone provides a strong mechanical and electrical bond, while soldering can add extra conductivity in some high-stress joints. Follow project requirements and safety guidelines.
Soldering isn’t always required; crimping alone is often enough, unless the design calls for solder for extra reliability.
How do I test a crimp connection?
Perform a gentle pull test to ensure the conductor stays seated and use a multimeter to check continuity and resistance. Visual inspection should confirm a uniform profile with no exposed copper beyond the crimp.
Pull gently to test seating and verify continuity with a meter.
Watch Video
What to Remember
- Use the correct tool for the connector size
- Prepare wires to avoid insulation damage
- Crimp with even, controlled force
- Inspect and test crimps before use
- Protect and label connections for reliability
