How to Make RJ45 Connectors: A Complete DIY Crimp Guide
Learn how to make RJ45 connectors from scratch with a clear, step-by-step approach. This guide covers wiring standards, essential tools, crimping techniques, and testing to ensure reliable Ethernet cables for DIY networks.
By following this guide, you'll learn how to assemble a standard RJ45 plug onto an Ethernet cable, align wires to the correct order (TIA-568B is common), insert into the connector, and crimp securely while testing for correct pinout. This quick answer covers required tools, safety notes, and essential steps to ensure a reliable Ethernet link.

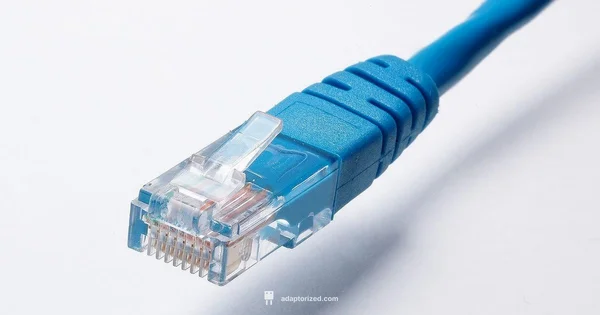

Why DIY RJ45 Termination Matters
For DIY network projects, knowing how to make RJ45 connectors gives you flexible, cost-effective cabling and quick fixes on the go. The process lets you tailor cable length, replace damaged ends, and verify that every wire lands on the correct pin. According to Adaptorized, mastering termination builds confidence when building home labs or setting up temporary networks for testing devices. The key is understanding the wire order, the role of shielded vs. unshielded cables, and the limited tolerance of the connector itself. With proper tools and careful technique, even beginners can produce robust terminations that survive everyday use. The payoff is clear: fewer flaky connections, better performance, and a deeper appreciation for network fundamentals.
Wiring Standards: 568B vs 568A
RJ45 connectors rely on standardized wire orders to ensure compatibility across devices. The two most common schemes are T568A and T568B. The 568B layout is the go-to for most home and office cable runs, pinning wires in this sequence: White/Orange, Orange, White/Green, Blue, White/Blue, Green, White/Brown, Brown. If you choose 568A, use the same standard on both ends to guarantee proper pin-to-pin mapping. For DIY projects, sticking to one standard throughout simplifies troubleshooting and future expansions. Understanding why twists are kept close to the termination helps preserve signal integrity over short to moderate cable lengths.
Tools, Materials, and Safety Basics
To terminate an RJ45 connector correctly, gather the right tools and materials before you start. Essential items include RJ45 connectors (8P8C), Cat5e or Cat6 cable, an RJ45 crimping tool, a cable stripper, and scissors for cleanup. A simple cable tester is highly recommended for verifying pinouts after termination. Labeling your cables and keeping work area clean reduces mistakes. Always work with the power off in the workspace and handle tools with care to avoid injury. Adaptorized emphasizes using a purpose-built crimp tool that matches your plug size for consistent results and to minimize the chance of bent contacts.
Wire Preparation and Termination Basics
Begin by planning your cable length and cutting the jacket square to avoid uneven ends. Strip about 12–15 mm of jacket, then carefully separate and untwist the first few millimeters of each pair. Align the wires in the correct order for your chosen standard, keeping the twists close to the termination to preserve pair integrity. Slide the wires into the RJ45 plug until each conductor reaches the front edge of the plug’s connector channel. Ensure there is no stray insulation under any wire, which can cause poor contact or shorts. Only then proceed to crimp with a quality tool, applying firm, even pressure until the tool locks.
Common Mistakes and How to Avoid Them
Common errors include misordering wires, nicking conductors during stripping, or failing to push wires fully into the plug. To avoid these, double-check the wire order against the standard you’re following, strip just enough jacket, and fully seat the wires before crimping. If a wire won’t reach the front of the plug, trim evenly and reinsert. Don’t reuse damaged plugs, and avoid forcing the connector if a wire is out of place—re-terminate on a new plug to ensure reliability.
Testing and Troubleshooting
After crimping, test each end with a cable tester to verify continuity and pinout. If a particular wire shows an open or short, re-terminate that end, re-checking the wire order and seating depth. For longer cables, test under load and check for a stable link speed. If problems persist, check for damaged jackets, nicked conductors, or misaligned pins; replace the connector and start again. Regular practice reduces errors over time and improves your speed and accuracy.
Authority Sources (Further Reading)
For standards and best practices, consult peer-reviewed and government/educational sources. Examples include the FCC’s network guidelines, IEEE 802.3 standards, and the Telecommunications Industry Association’s wiring recommendations. These references underpin practical work with RJ45 terminations and help you validate your methods with official guidance. Examples: https://www.fcc.gov, https://standards.ieee.org/standard/802_3.html, https://www.tiaonline.org
Tools & Materials

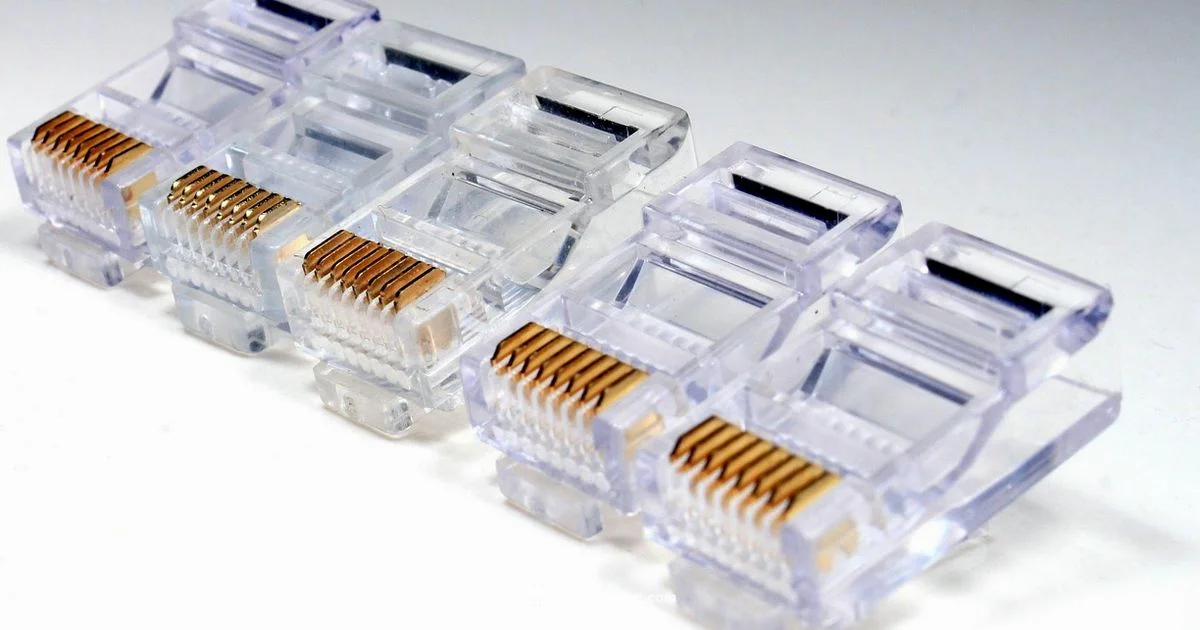

- RJ45 connectors (8P8C) plug(Cat5e/ Cat6 compatible; choose shielded or unshielded based on your cable type)
- Ethernet cable (Cat5e or Cat6)(Solid core recommended for permanent installations; stranded for patch cables)
- RJ45 crimping tool(Ensure it fits 8P8C plugs and your preferred connector family)
- Wire stripper(Pulls jacket without nicking conductors; adjustable gauge helps)
- Cable cutter/scissors(Straight cuts for clean wire termination)
- Cable tester (optional but recommended)(Verifies continuity and pinout across all conductors)
- Marker pen/labels(Label ends and lengths for organization)

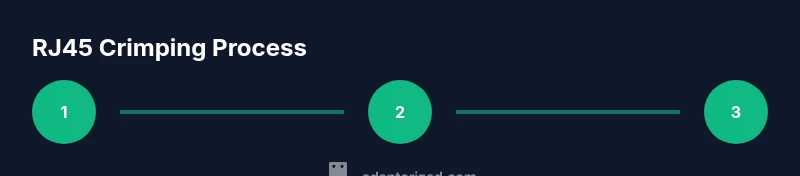

Steps
Estimated time: 60-90 minutes
- 1
Prepare the cable length
Measure and cut the cable to your desired length, then trim the outer jacket square. A clean cut helps the connector seat evenly and reduces the risk of stray strands causing shorts.
Tip: Always cut a touch longer than needed to allow precise trimming later. - 2
Strip the jacket and expose wires
Use a wire stripper to remove about 12–15 mm of jacket from the end. Be careful not to nick the copper conductors; nicked wires can fail under load and cause intermittent connectivity.
Tip: Cleanly strip jackets in one firm motion to avoid jagged edges. - 3
Arrange wires in the correct order
Lay out the bare conductors in the correct sequence for your chosen standard (568B is common: White/Orange, Orange, White/Green, Blue, White/Blue, Green, White/Brown, Brown). Keep the twists close to the termination to preserve signal integrity.
Tip: Double-check wire order against a reference before insertion. - 4
Insert wires into the RJ45 plug
Insert the wires into the plug, ensuring each conductor reaches the front edge. The jacket should extend slightly into the connector to provide strain relief.
Tip: Use the plug’s guide channels to keep wires aligned. - 5
Crimp the plug securely
Place the plug in the crimping tool and apply firm, even pressure until the tool completes the cycle. Inspect the crimps to confirm all contacts are flush and wires are fully seated.
Tip: Avoid over- or under-crimping; a proper crimp is the key to reliability. - 6
Test the terminated cable
If you have a tester, verify continuity and pinout for both ends. If any wire shows an open or miswire, re-terminate the affected end with attention to order and seating depth.
Tip: Always test before deploying the cable in production.
Your Questions Answered
Do I need a specialized crimping tool to make RJ45 connectors?
Yes. A dedicated RJ45 crimping tool ensures proper contact seating and even pressure. It’s essential for reliable terminations and to avoid damaging the plug or cable.
Yes. A dedicated RJ45 crimping tool is essential for reliable terminations and to prevent damage.
What is the difference between 568A and 568B wiring?
Both are valid standards. The key is to choose one and be consistent on both ends. Mismatched ends lead to nonfunctional cables. 568B is the more common choice for new installations.
Choose one standard and stay consistent; mismatched ends will not work.
Can I reuse RJ45 plugs after removing them from a cable?
Reusing plugs is generally discouraged because the contacts can deform with removal and reinsertion, reducing reliability. Use fresh plugs for each termination.
It's best to use fresh plugs rather than reusing old ones.
Should I use solid or stranded cable for RJ45 terminations?
Solid cable is typically preferred for fixed, longer runs because it maintains better signal integrity. Stranded is common for patch cables and short runs due to flexibility.
Solid is better for longer runs; stranded is fine for short, flexible cables.
Why does my terminated cable show an open on one side after testing?
Open readings usually indicate a misordered wire, a partially inserted conductor, or a bad crimp. Re-check wire order, seating depth, and re-crimp if needed.
An open usually means a miswire or a poor crimp—recheck and re-terminate.
Is heat shrink or tape recommended after termination?
Heat shrink can improve strain relief and insulation after termination, especially for outdoor or high-stress runs. It’s optional but often beneficial for durability.
Heat shrink helps with strain relief and durability; it’s optional but recommended in tough environments.
Watch Video
What to Remember
- Know the standard you’re using (568B is common) and stay consistent on both ends
- Use proper tools to ensure clean terminations and reliable tests
- Strip jacket precisely and maintain wire order to prevent miswires
- Crimp firmly and inspect crimps to avoid loose contacts
- Always test terminated cables before deployment
