How to Attach a Connector to an Ethernet Cable: Step-by-Step
Learn how to attach an RJ-45 connector to an ethernet cable with a practical, step-by-step approach. Get tips on cable types, proper stripping, wiring order, crimping, and testing for reliable terminations. A hands-on guide from Adaptorized.
Using this guide, you’ll learn how to put a connector on ethernet cable by selecting the correct RJ-45 connector, preparing the cable properly, ordering and aligning the wire pairs, inserting them into the plug, crimping firmly, and testing the termination with a cable tester. You will also learn how to test for continuity and how to fix common miswiring.

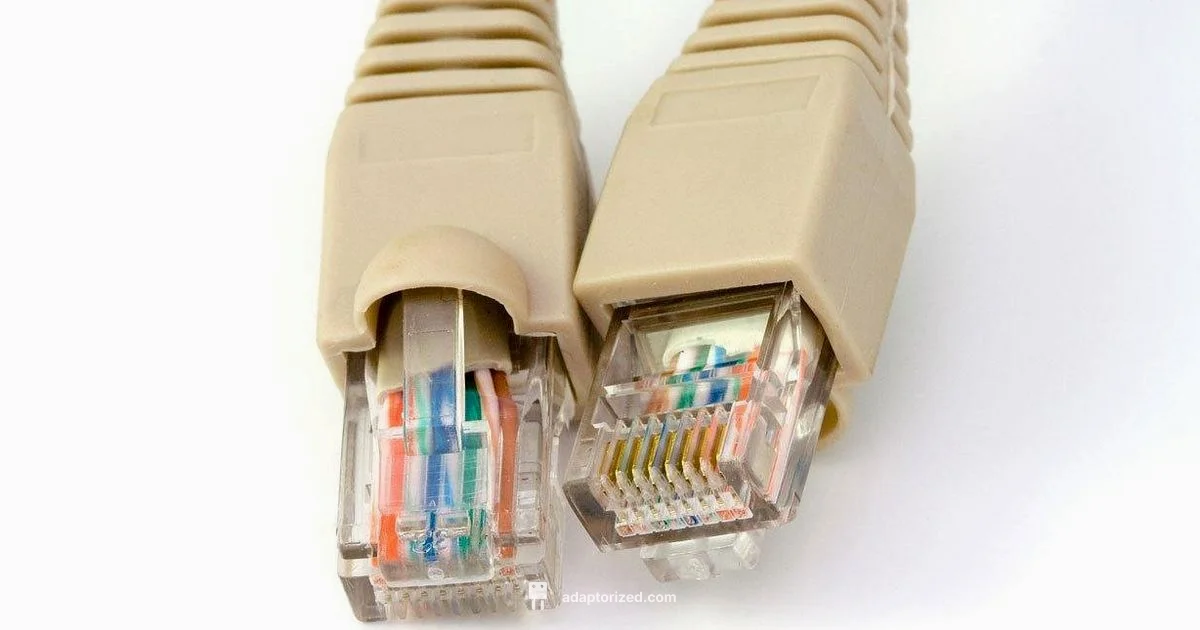

Understanding Ethernet connector terminations and compatibility
When you need to extend a network or replace a damaged connector, understanding how to put a connector on ethernet cable is essential. The Adaptorized team emphasizes picking the right RJ-45 connector for your cable category (Cat5e, Cat6, or Cat6a) and matching it to whether your cable is solid or stranded. In addition, you should decide on a standard (TIA/EIA 568A or 568B) and apply it consistently on both ends. This section lays the groundwork so you can terminate with confidence and minimize signal loss due to miswiring or poor crimping. According to Adaptorized, reliable terminations start with the right parts, careful preparation, and precise execution rather than rushing through the steps.
Choosing the right RJ-45 connector and cable type
- RJ-45 connectors come in different styles (standard, pass-through, shielded vs unshielded). For most home and office projects, a standard 8P8C RJ-45 connector paired with Cat5e or Cat6 cable is sufficient. If you’re terminating solid-core cable in-wall, ensure the connector supports solid conductors. If you’re terminating stranded cable for patch cables, choose a connector rated for stranded wire. Always verify compatibility with your specific cable category. This choice influences termination reliability and future performance.
Step 1: Select and prepare the connector and cable type
Select an RJ-45 connector compatible with your cable category (Cat5e/Cat6) and with the conductor type (solid or stranded). Prepare a clean, straight length of cable and have a cable stripper, a dedicated RJ-45 crimping tool, and a tester ready. By aligning the connector with the cable’s specification, you reduce the risk of poor contact or increased attenuation. This step saves time and prevents rework later in the process.
Step 2: Cut, strip, and expose the conductors correctly
Cut the cable squarely and strip about 1 inch (2.5 cm) of the outer jacket. Remove only the jacket to expose the insulated conductors, leaving as much length as possible intact to maintain signal quality. Be careful not to nick or cut any copper wires. The goal is clean exposure of the 8 conductors while keeping the twists close to the point of termination. This helps preserve impedance and reduces reflection.
Step 3: Untwist, align, and order the wire pairs
Gently untwist a small portion of each pair and place the wires in the correct order for your chosen standard (568B is common in the U.S.). Keep the pairs flat and aligned, then trim any excess length so all conductors end near the front of the connector. The alignment matters because misordered pairs cause your network to fail the tests. Maintain the original twist right up to the termination to minimize crosstalk.
Step 4: Trim conductors to the proper length and insert into the connector
Ensure each conductor is in its own channel and extend to the end of the RJ-45 plug. Trim to a uniform length, leaving about 0.5 inches (12 mm) protruding into the plug. Insert firmly so each wire fully seats against the contact. A common mistake is leaving wires too long or not fully seated—double-check alignment before crimping.
Step 5: Crimp the connector securely using the RJ-45 tool
Place the connector into the crimp tool’s housing and squeeze firmly until you hear a distinct click. The crimp should secure both the outer conductors and the individual pins. If the tool lacks a proper bite or the connector feels loose, stop and re-seat before crimping again. Proper crimping ensures reliable electrical contact and mechanical retention.
Step 6: Inspect the termination for defects
visually inspect for any misaligned or nicked wires, partial insertions, or bent pins. Use a magnifier if needed and ensure there are no stray copper strands protruding beyond the plug. A clean finish prevents shorts and intermittent connectivity issues. If you find defects, redo the termination rather than attempting a repair.
Step 7: Test continuity and pinout with a cable tester
A cable tester checks that each pin on one end matches the same pin on the other end and verifies there are no opens or shorts. Follow the tester’s instructions to run a full continuity test. If the result shows a miswire, re-terminate the cable beginning at Step 3. Regular testing catches mistakes that would otherwise go unnoticed until the network is deployed.
Step 8: Terminate the other end with the same standard
To ensure a working link, terminate both ends of a cable with the same wiring standard (568A or 568B). Mismatched standards can cause a non-functional link and troubleshooting headaches. Label the ends for future maintenance, so you don’t confuse the standards on different cables.
Step 9: Clean up, label, and document
Return tools to their case, label the terminated cable, and record the connector type and standard used. Keep spare connectors and wrenches organized for future terminations. Documentation saves time on maintenance or expansions and helps you reproduce reliable terminations in future projects.
Tools & Materials
- RJ-45 connector (8P8C) compatible with cable category(Ensure compatibility with Cat5e/Cat6 and solid vs stranded wire)
- Cable stripping tool or sharp utility knife(Strip jacket cleanly without nicking conductors; aim for ~1 inch exposure)
- RJ-45 crimping tool with Ethernet die(Use correct die for your connector and wire type)
- Cable tester or continuity tester(Optional but highly recommended to validate termination)
- Scissors or precision knife(For tidy adjustments and end trimming)

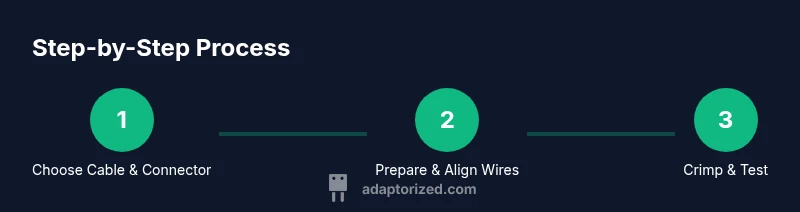

Steps
Estimated time: 60-90 minutes
- 1
Choose and prepare the connector and cable type
Identify the cable category and conductor type, then select a compatible RJ-45 connector. Gather the required tools so you are ready to terminate without interruptions. This reduces errors from mismatched parts.
Tip: Always verify compatibility before starting; mismatched parts guarantee a failed termination. - 2
Cut, strip, and expose the conductors
Cut the cable squarely and remove about 1 inch of the outer jacket. Expose the conductors, taking care not to nick any copper strands. Keep twists close to the termination to preserve impedance.
Tip: Score the jacket lightly to avoid knife slips that could pinch wires. - 3
Untwist, align, and order the wire pairs
Untwist a small portion of each pair and align them in the chosen standard order. Ensure you do not mix up pairs, and keep the alignment neat. This order is critical for correct data transmission.
Tip: Decide on 568A or 568B at the start and keep it consistent on both ends. - 4
Trim conductors and insert into the plug
Trim all conductors to a uniform length so they reach the end of the plug’s contacts. Insert wires fully into the RJ-45 plug, ensuring each occupies its channel. Confirm seating before crimping.
Tip: If a conductor doesn’t reach the end, re-trim rather than crimping with an incomplete connection. - 5
Crimp the connector firmly
Place the connector in the crimp tool and apply steady pressure until you hear the tool bite. A proper crimp holds the conductors and finishes the termination.
Tip: If you don’t hear a solid click, re-seat and re-crimp. - 6
Inspect and test the termination
Visually inspect for exposed copper and misalignment. Use a tester to confirm pinout and continuity across all 8 pins.
Tip: Look for any stray strands; even a single strand touching the connector housing can cause a short. - 7
Test the other end and verify consistency
Terminate the cable ends with the same standard and test again. Consistency across both ends ensures a working link.
Tip: Label terminated cables to avoid cross-terminals in future work. - 8
Label, document, and store tools
Record the cable type, standard used, and date of termination. Store tools and spare parts in a dedicated kit for quick access.
Tip: Documentation helps with maintenance and future expansions.
Your Questions Answered
What is the difference between solid and stranded Ethernet cable when terminating?
Solid cable is stiffer and preferred for in-wall installations, offering lower attenuation over long runs. Stranded cable is more flexible, suited for patch cables and frequent movement. Terminations should match the wire type and the connector’s design.
Solid cables are best for fixed installs; stranded cables work well for flexible setups. Terminate using connectors rated for the wire type.
Do I need a specialized pass-through RJ-45 connector?
Pass-through connectors can simplify wiring by allowing you to see the conductors extend through the plug, but they are not required. Standard 8P8C connectors work well when you align and crimp correctly.
Pass-throughs are optional but handy; you can still terminate with regular connectors if used carefully.
Why does my cable tester show an open on one pin?
An open means a conductor did not reach the pin or was not seated correctly. Re-strip, reinsert, and re-crimp, then re-test to confirm all pins read properly.
If a tester shows an open pin, re-terminate that end and test again.
Can I reuse RJ-45 connectors after a failed crimp?
No. A failed crimp can compromise both electrical contact and mechanical integrity. Dispose of the defective connector and start fresh with a new connector and proper crimp.
No reuse after a failed crimp; replace and re-terminate.
What wiring standard should I use for Ethernet terminations?
Choose either 568A or 568B and apply it consistently on both ends. The most common in many regions is 568B, but consistency is the key.
Pick a standard like 568B and use it on both ends.
Is it possible to terminate Ethernet cables without a crimping tool?
A crimping tool is essential for a secure, reliable termination. Without it, you risk poor contact and unstable connections. If you must improvise, the result will likely be inconsistent.
You really need a crimping tool for a proper termination.
How can I improve reliability for long cable runs?
Use proper shielded connectors if shielding is required, maintain good strain relief, and avoid sharp bends. For very long runs, consider thicker cables with appropriate category rating to minimize attenuation.
Choose the right cable and ensure neat terminations with good strain relief.
What’s the best practice for labeling terminated cables?
Label both ends with the cable ID, date, and standard used. This makes future maintenance straightforward and reduces misidentification in dense installations.
Label both ends and note the standard used.
Watch Video
What to Remember
- Choose the right connector for your cable category
- Keep twists tight and conductors properly aligned
- Crimp firmly and inspect the termination
- Test with a tester and re-terminate if needed
- Document and label terminated cables
