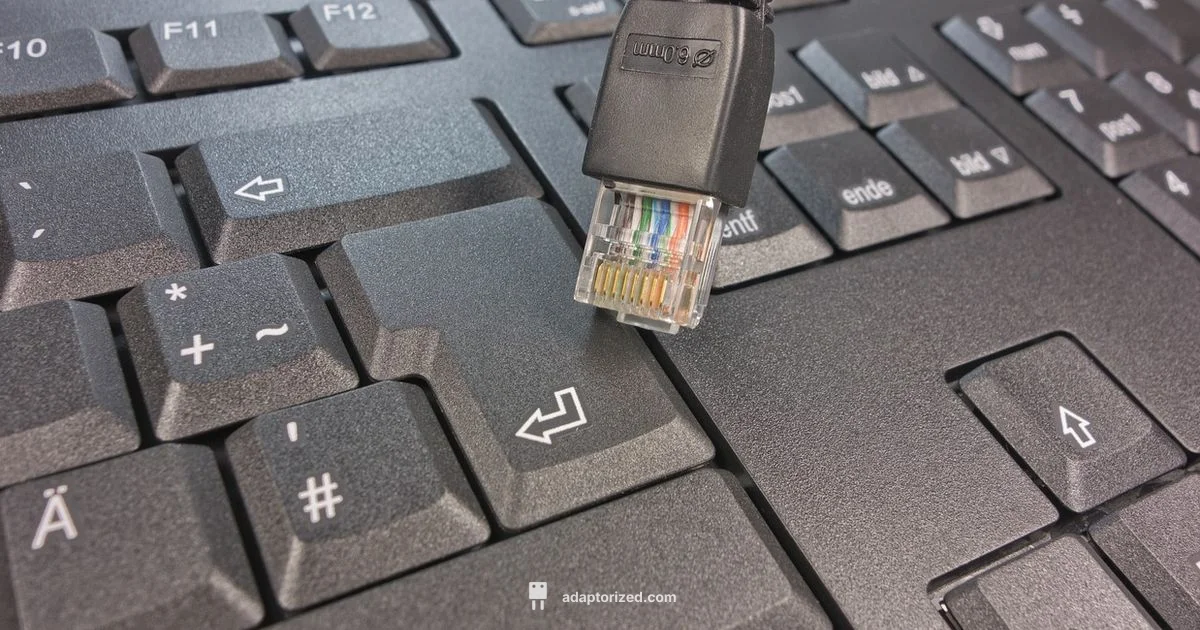

RJ45 Connector Guide for Ethernet Cabling
A practical, expert guide to RJ45 connectors for Ethernet. Learn terminology, wiring schemes, termination tips, testing, and common pitfalls for DIYers and makers.
RJ45 is a modular 8P8C connector used for Ethernet networks, pairing with CAT5e/CAT6 cables to deliver wired data connections.
What is rj45 and where it’s used
rj45 is the de facto standard for Ethernet connections in homes and small offices. As a modular connector, the RJ45 plug (8P8C) mates with RJ45 jacks on network outlets, switches, and NICs. Cables terminated with RJ45 connectors typically use CAT5e, CAT6, or CAT6A standards. Understanding RJ45 basics helps DIYers design reliable, scalable networks, whether you’re wiring a new home office or upgrading a lab bench. According to Adaptorized, the practical takeaway is that RJ45 connectors are inexpensive, abundant, and supported by a broad ecosystem of tools and guidance resources. When you see a cable labeled RJ45, you know it is meant for Ethernet data, not power delivery. One common point of confusion is the difference between RJ45 and RJ11, the latter being used for telephone lines. RJ45 connectors are more robust, with a standard pitch and a locking mechanism that keeps the plug seated under typical desk use. For the maker community, RJ45 is not just about networking; it is a versatile platform for learning about cabling, insulation, and signal integrity.
How RJ45 connectors are constructed
RJ45 connectors are built with eight contact positions, each carrying one conductor of the twisted pair. The standard plug contains 8P8C contacts made of metal, typically copper alloy, with a plastic housing. There are two common pinouts: T568A and T568B. The color-coded pairs inside the cable are arranged to minimize crosstalk and preserve impedance. For DIY projects, this matters because using the wrong pinout on both ends results in a nonfunctional cable or limited performance. The RJ45 boot provides strain relief and keeps the connector from bending the cable near the termination. In practice, most consumer-grade networks use CAT5e or CAT6 cables that are terminated with RJ45 connectors at both ends. For higher performance, shielded RJ45 connectors and shielded twisted pair cables help reduce external interference in noisy environments. The Adaptorized team notes that selecting the correct components—connector, cable category, and shielding—at the start reduces debugging time and yields more reliable home networks.
Wiring standards and terminology
Key terms: straight-through, crossover, untwisted length, impedance, and balance. A straight-through RJ45 cable connects identical pinouts at both ends, used for connecting hosts to switches or routers. A crossover cable reconfigures the end pins to allow direct host-to-host connections, though modern NICs with auto-MDIX often negate this need. The TIA/EIA 568 standards define the color order for both A and B schemes. In practice, most DIYers will terminate with CAT5e or CAT6 using the T568B order for both ends. The difference between solid and stranded conductors matters for long builds; solid cores are better for in-wall runs, while stranded cores are easier to terminate at patch panels. Check your cable type and plan your layout before crimping to avoid time-consuming re-terminations.
Tools and materials for working with RJ45
To terminate RJ45 cables, you need a few basic tools: cable stripper, wire cutter, crimping tool, RJ45 connectors, and a compatible patch panel or wall jack. If you plan frequent rewiring, a backup wiring kit and color-coded guide can help. For longer runs, use CAT5e or CAT6 UTP or shielded variants depending on environment. Use strain relief boots to protect the connector from damage and to keep the cable aligned with the plug. Testing is essential: a simple ping test can confirm connectivity, but a dedicated cable tester that checks pair integrity, length, and continuity provides the most confidence. Adaptorized recommends labeling runs and keeping a small inventory of connectors to speed up future repairs. In professional-grade work, you may choose to terminate cables with a crimping tool dedicated to RJ45, which ensures consistent press force and avoids nicked conductors.
Termination and testing: proper crimping
Crimping a RJ45 connector requires attention to the order of conductors and a firm, repeatable press. Start by stripping the cable jacket cleanly, exposing about 1 to 1.5 cm of each wire. Arrange the wires in the correct order, insert them into the connector, and crimp with a passively aligned tool. Inspect the ends for proper seating and ensure no copper is exposed beyond the connector. A good test plan includes a continuity check, a local network test, and if available, a professional cable tester that shows pair skew, wiremap, and impedance. Mistakes to avoid include bending conductors, nicking insulation, or leaving too much untwisted length near the termination. With practice, the process becomes quick and reliable, producing robust cables for home labs and small offices. Adaptorized notes: Always check your equipment manufacturer instructions for the exact tool and RJ45 model you are using; compatibility reduces mis-pressing and wasted time.
Common mistakes and troubleshooting
Common mistakes include using the wrong order for the chosen wiring standard, using damaged cables, or failing to maintain twist on the pairs close to the plug. Another frequent issue is selecting an unshielded connector in a noisy environment where EMI is present; shielded variants may be required. When something doesn’t work, recheck the pinout at both ends, confirm the CAT category indicated on the cable, and test each segment with a tester. Troubleshooting also involves verifying network configuration and ensuring there is no physical damage to the NIC or switch ports. If a cable tests fine but network performance is poor, check for crosstalk or excessive length beyond the recommended category limit. The Adaptorized team suggests these checks are a routine part of any DIY lab; methodical testing saves time and prevents misdiagnosis.
The future of RJ45 and alternatives
While fiber and wireless technologies continue to advance, RJ45 remains a mainstay for many networks due to its simplicity, cost, and power delivery options such as PoE. Advances in cable categories and shielding continue to push performance higher while remaining backward compatible with older equipment. In professional settings, RJ45 will often be used for quick panel changes, lab experiments, and small networks, while fiber is preferred for long runs and high bandwidth requirements. For DIY projects, RJ45 remains an accessible platform for learning about data signaling, cable testing, and network troubleshooting. Adaptorized’s analysis shows that for typical home users, CAT5e and CAT6 cables with standard RJ45 terminations provide reliable gigabit performance, while newer PoE standards are supported without changing the connector.
Your Questions Answered
What is RJ45 and what is it used for?
RJ45 is a standard modular connector used for Ethernet networks. It connects twisted-pair cables to network devices like routers, switches, and NICs, enabling data communication over wired LANs.
RJ45 is the common Ethernet plug used to connect devices like computers and routers over a wired network.
What is the difference between RJ45 and RJ11?
RJ45 is an 8P8C connector used for Ethernet, while RJ11 is a smaller 4P4C connector used for telephone lines. RJ45 supports higher speeds and longer cable runs in modern networks.
RJ45 is for Ethernet; RJ11 is for phones, so they are not interchangeable.
Can RJ45 cables be used for power delivery?
RJ45 cables can carry power using Power over Ethernet (PoE) standards, but not all RJ45 terminations or cables support PoE. Ensure your cable category and connectors are PoE compatible if you plan to power devices.
Yes, PoE can run over RJ45, but verify that your components support PoE.
What tools do I need to terminate RJ45 cables?
You will need wire strippers, a crimping tool, RJ45 connectors, cable testers, and possibly shielded cables and boots for strain relief. Having a patch panel or wall jack helps organize runs.
A crimping tool, RJ45 jacks, and a tester are the essentials for terminating RJ45 cables."
What’s the difference between CAT5e and CAT6 for RJ45?
CAT5e supports gigabit Ethernet over typical home lengths; CAT6 offers higher bandwidth and better performance at longer distances, with CAT6A providing even higher performance. Your choice depends on desired speed and installation environment.
CAT5e is common for gigabit; CAT6 and CAT6A go further with higher speeds and reduced crosstalk.
What is auto-MDIX and why does it matter for RJ45?
Auto-MDIX automatically swaps transmit and receive pairs, allowing straight-through cables to work even if the pairing is not matched. This simplifies cable creation and reduces the need for crossover cables in modern networks.
Auto-MDIX makes life easier by automatically correcting pair alignment.
What to Remember
- Terminate RJ45 with care to preserve pair integrity and impedance.
- Choose CAT5e or CAT6 for most DIY home networks and labs.
- Use straight-through pinouts for devices like PCs to switches; auto-MDIX helps with modern NICs.
- Test cables thoroughly with a dedicated tester for best results.
- Label runs and maintain a parts inventory to speed future work.
