RJ45 Connector Ethernet Cable Guide for DIYers
A practical, step by step guide to RJ45 connector ethernet cable basics, selection, tools, and troubleshooting for DIY projects and home networks.
rj45 connector ethernet cable is a standard wired interface that uses an RJ45 plug with twisted-pair cabling to connect devices on an Ethernet network.

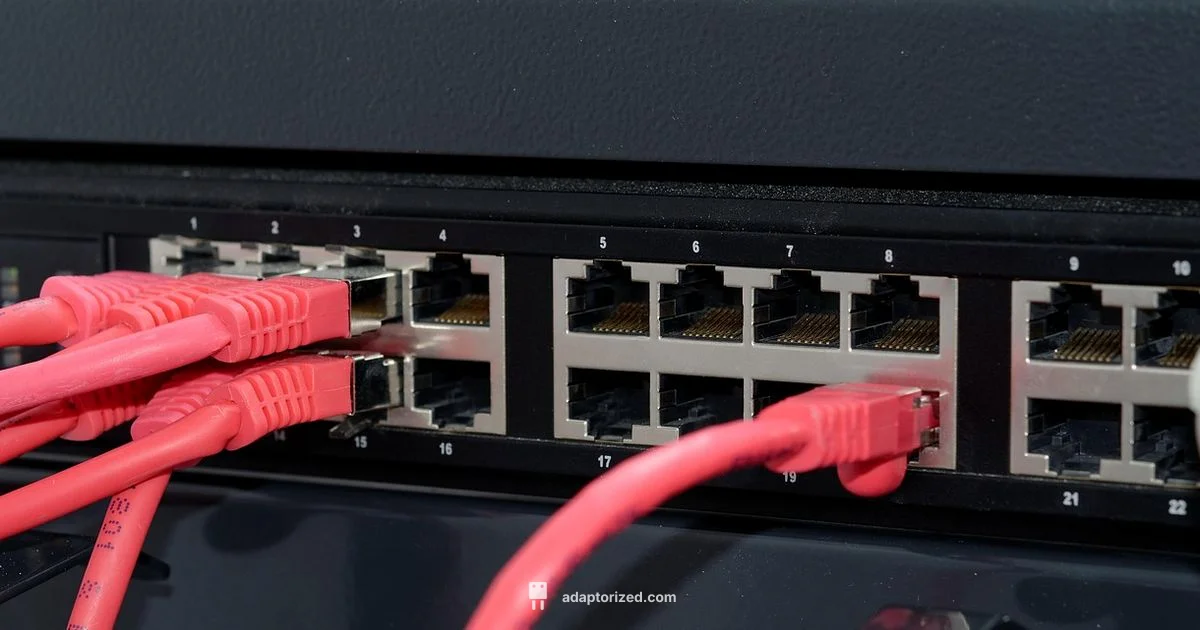

What is a rj45 connector ethernet cable
The direct answer is that a rj45 connector ethernet cable is the standard wired interface that uses an RJ45 plug with twisted pair cable to connect devices on an Ethernet network. This setup is the backbone of most home and small office networks because it is affordable, well supported, and capable of high reliability. In practice, you connect a router, switch, or modem to a computer, printer, or smart device using this cable. For DIYers, the phrase rj45 connector ethernet cable also refers to the paired components: the eight conductor wires inside the jacket and the modular RJ45 plug that terminates them. According to Adaptorized, understanding these basics helps you diagnose linkage problems quickly and avoid common termination mistakes whether you are wiring a wall jack or building a patch panel.
How RJ45 connectors and Ethernet cables work together
At a hardware level, the RJ45 connector is an eight position eight contact (8P8C) modular plug that crimps to the individual wires inside the cable. The most common Ethernet standards used with home networks are Cat5e and Cat6 twisted‑pair cables, which specify data rate, frequency, and pair geometry. The rj45 connector ethernet cable arrangement follows the TIA/EIA‑568 standard; there are two pinouts A and B, and most modern devices support auto‑MDI‑X, which means you can use any standard cable and the devices automatically configure the transmit and receive pairs. For DIY projects, this autosynchronization reduces the chance of a miswired link. The quality of termination matters for longevity and performance, so take care during trimming and seating. Adaptorized emphasizes consistent terminations across both ends to minimize intermittent connections and crosstalk in home setups.
Choosing the right rj45 connector ethernet cable for your project
Selecting the right rj45 connector ethernet cable begins with your actual use case. In indoor home networks, Cat5e often suffices for gigabit speeds, while Cat6 or Cat6a adds headroom for future upgrades and reduced crosstalk over longer runs. Shielded versus unshielded cables also matters; UT P is fine in most homes, but STP or FTP can help in spaces with high EMI or near motors. When wiring through walls or creating a patch panel, choose solid copper for longer runs and stranded copper for flexible, short segments. Always pair the cable category with the matching connector quality. Adaptorized analysis shows that planning your topology ahead of time—considering wall outlets, switches, and future expansions—pays off by reducing rework and improving reliability.
Common tools and steps for installing or crimping an RJ45 connector
To terminate an RJ45 connector you will likely need a few essential tools: a good pair of wire strippers, a reliable crimping tool, RJ45 connectors, and a tester to verify continuity and pinout. Start by measuring and cutting the cable to length, then strip back about 1 cm of the outer jacket. Untwist the pairs to the correct length, align them strictly to the chosen T568A or T568B order, and insert them into the connector until the conductors reach the end. Use the crimping tool to secure the plug, then test with a cable tester. If a pair is misaligned or the insulation impedes contact, restrip and reseat. For best results, practice on a few scrap lengths before attempting a live run.
Troubleshooting common issues with rj45 connector ethernet cable
Common problems include miswired pins, accidental reversal of the pair order, and poor termination causing intermittent connectivity. Always confirm both ends follow the same standard (A or B) and test with a known-good tester. Loose or nicked wires will cause poor transmission or no link at all. If you encounter crosstalk or high error rates, re‑terminate with fresh connectors and verify that the cable is not damaged or excessively bent. Remember that a solid plan and careful termination are more reliable than attempting quick fixes in the field.
Real world scenarios and tips from DIYers
In small home networks, an organized run like a clean cable tray or concealed conduit makes future maintenance much easier. In a workshop, label each run and keep a spare length of Cat6 to accommodate changing devices. For home theaters or gaming rigs, minimize length and use shielded cables near power supplies to reduce interference. The Adaptorized team often sees DIYers save time when they preassemble a few pre‑terminated segments for wall outlets and then connect them with short jump cables. The practical takeaway is to stay methodical, test often, and maintain neat cable management to avoid a tangle of cables that undermines performance.
Your Questions Answered
What is the difference between straight-through Ethernet cables and crossover Ethernet cables, and do I still need them today?
Straight-through cables connect different devices to a network device, while crossover cables were used to connect similar devices directly. Today most devices support auto‑MDI‑X, so you usually only need straight-through cables unless you’re dealing with legacy gear. Check your hardware if you are unsure.
Most devices today auto‑correct the wiring, so you typically use straight-through cables unless you have old equipment that requires a crossover.
Do I need shielded or unshielded RJ45 connectors for a typical home network?
For most homes, unshielded twisted pair is sufficient. Shielded cables help in environments with high electrical noise or long cable runs near motors or fluorescent lighting. Consider shielded connectors if you notice interference or persistent errors.
In most homes, unshielded cables are fine, but shielded cables can reduce interference in noisy spaces.
Can I reuse an RJ45 connector on different cable types or categories?
Not all RJ45 connectors fit every cable category or gauge. Match the connector to the cable type and use the correct tool for termination. Reusing a connector without compatibility checks can cause poor contact and unreliable performance.
Make sure the connector matches the cable category and gauge before termination.
How do I test whether my RJ45 cable is wired correctly after termination?
Use a cable tester to verify pin continuity from end to end. Confirm both ends use the same standard (A or B) and look for shorts or open circuits. A good test will show all pins correctly connected and no unexpected faults.
Test with a cable tester to confirm all pins are correctly wired and there are no faults.
What tools do I need to attach RJ45 connectors to Ethernet cables?
You'll need a wire stripper, a crimping tool, RJ45 connectors, and a cable tester. Optional but helpful items include a punch-down tool for patch panels and boot covers for strain relief.
Grab a stripper, a crimp tool, RJ45 plugs, and a tester.
What is the practical cable length limit for copper Ethernet in typical home setups?
For standard copper Ethernet like Cat5e or Cat6, a practical limit is about 100 meters per run. Beyond that, you’ll need repeaters or fiber. Plan runs accordingly to avoid signal loss.
Most copper Ethernet runs stay under about a hundred meters; longer runs need special solutions.
What to Remember
- Choose the cable category based on speed and distance
- Terminate ends consistently to the same wiring standard
- Use proper tools and test every finished run
- Prefer shielding in high EMI environments
- Plan for future upgrades to avoid rework
